Product Description

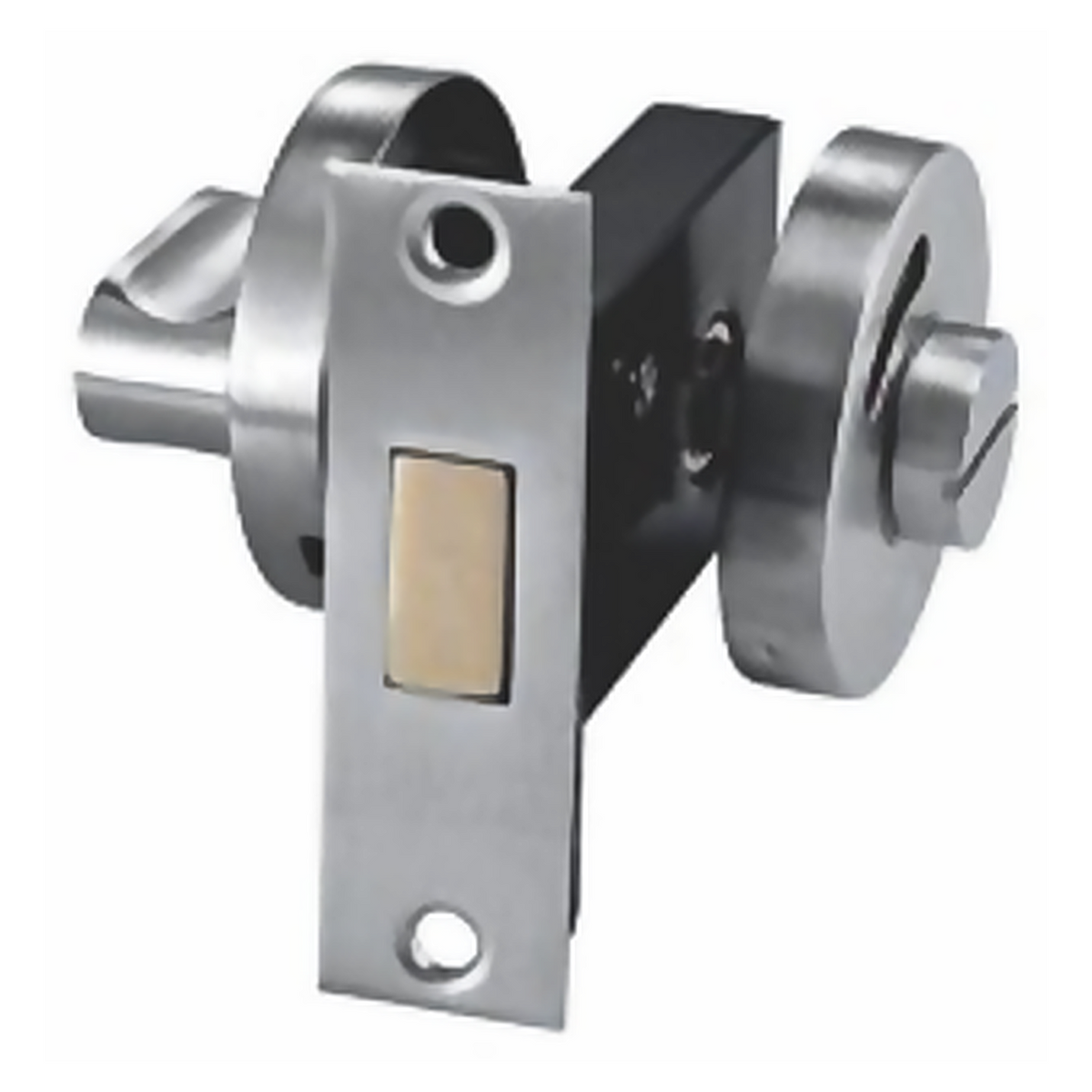

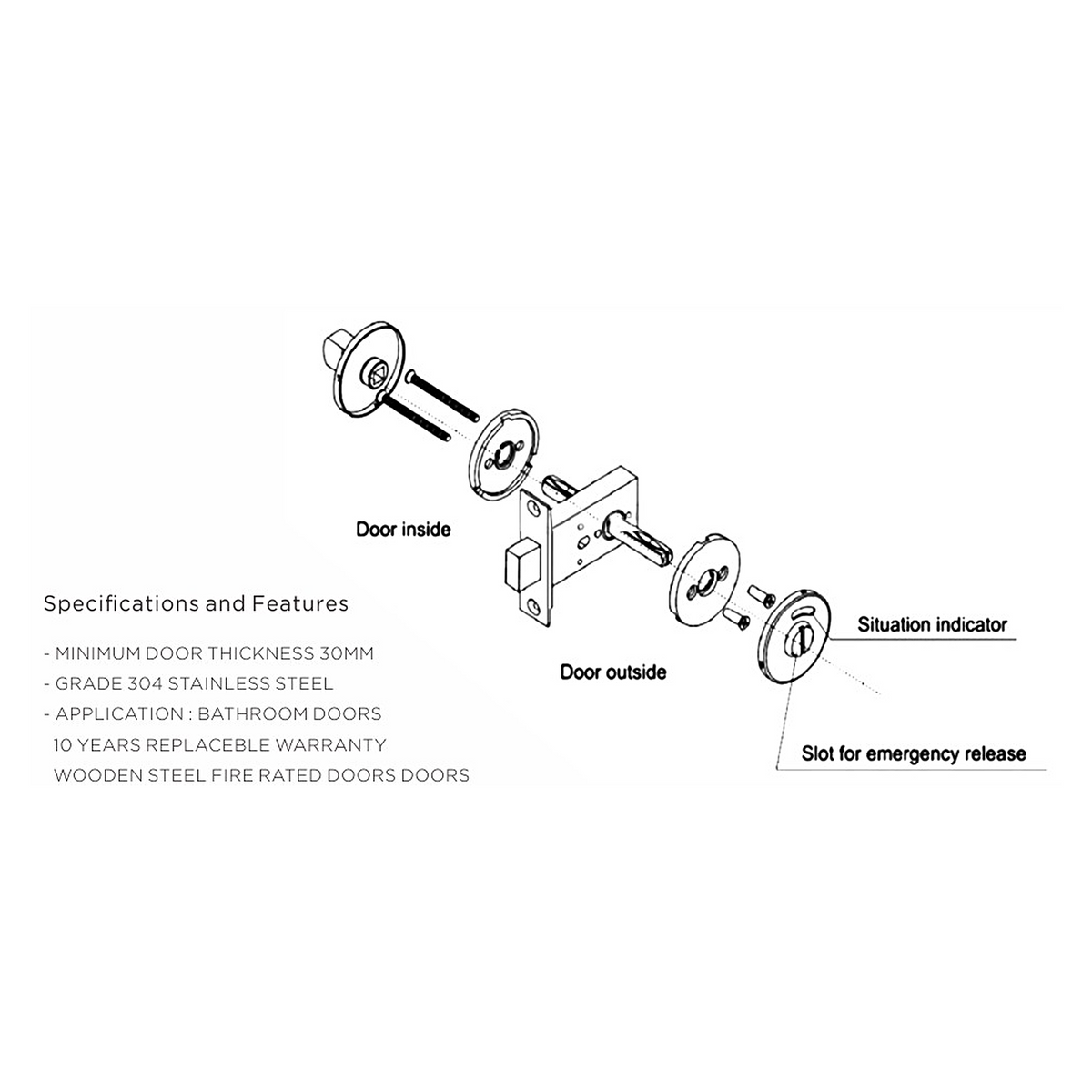

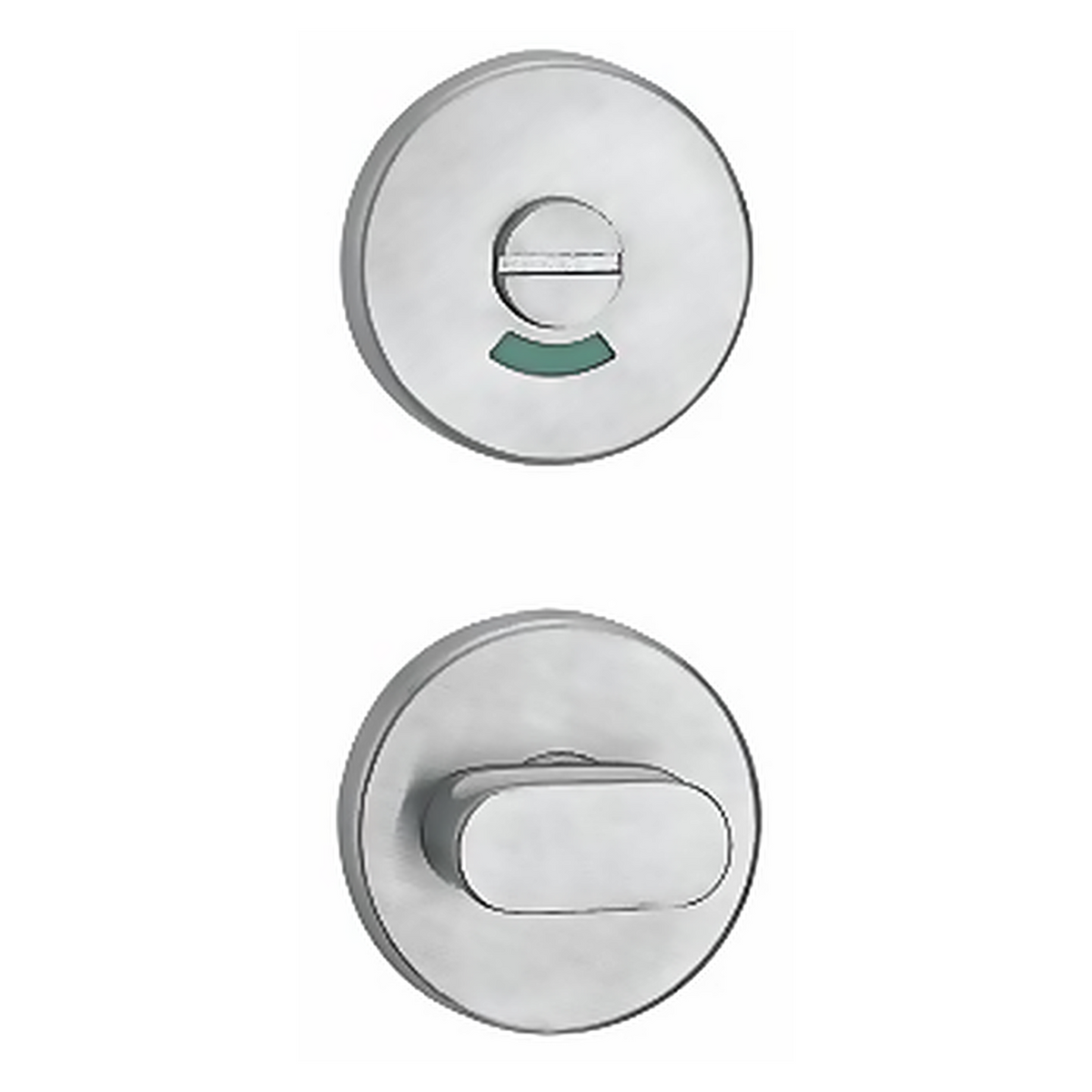

The SW-03.SS is a bathroom turn and release set from the Stainless Steel Door Lock Series . It pairs a low-profile oval thumbturn on the inside of the door with an emergency release on the outside, both on Ø53 mm roses in Grade 304 Stainless Steel.

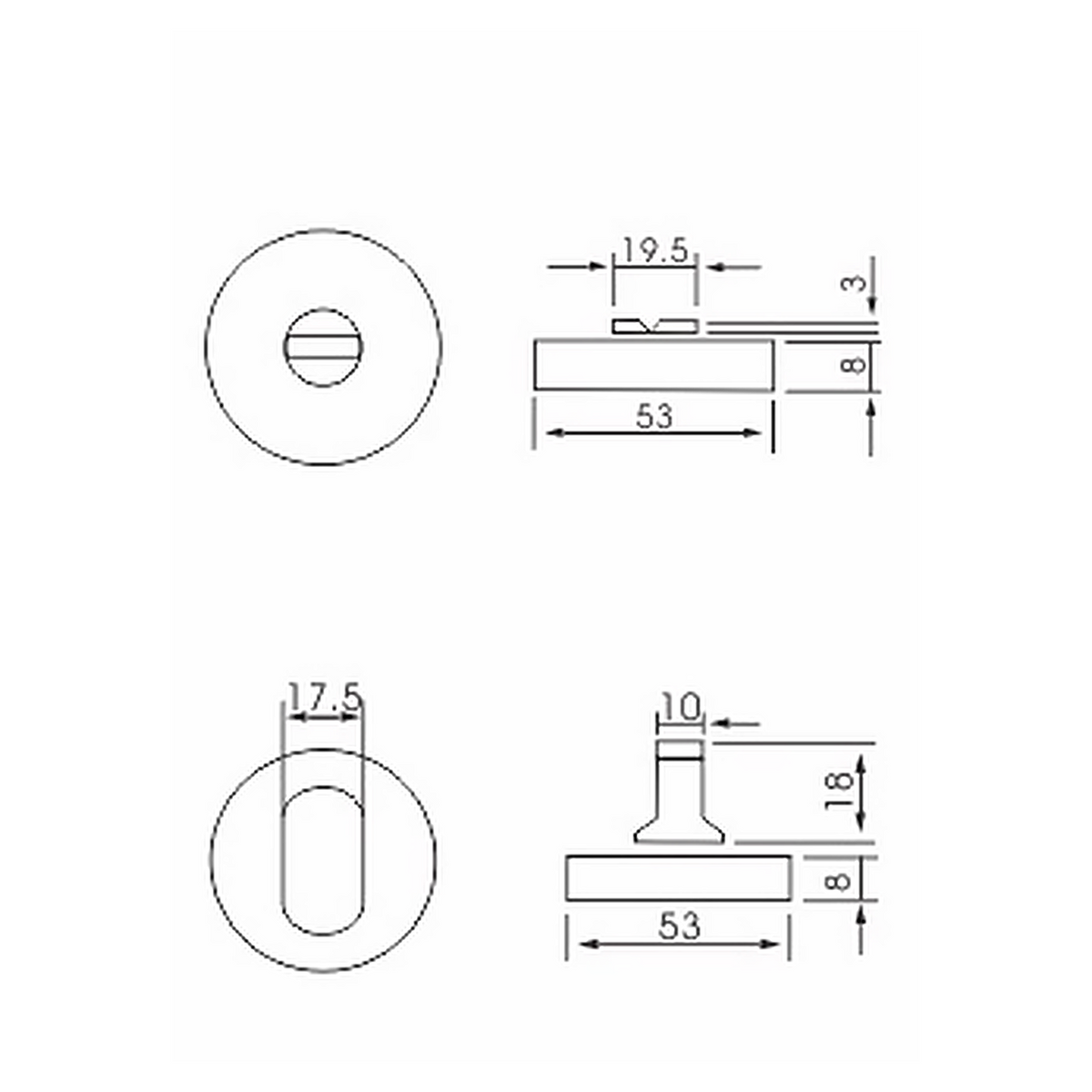

The outside rose carries a green occupancy indicator, so anyone outside can see at a glance whether the room is occupied. The release slot measures 19.5 mm and stands 3 mm proud of a 8 mm rose; the inside turn is 17.5 mm wide and 18 mm high on a 8 mm rose. It suits bathroom doors from 30 mm thick upward in wooden, steel and fire rated leaves, and is backed by a 10 year replaceable warranty.
Key Features
- Grade 304 Stainless Steel
- Ø53 mm roses both sides
- 19.5 mm slot for emergency release
- Low-Profile Oval Thumbturn inside
- Turn 17.5 mm × 18 mm
- Occupancy indicator on the outside rose
- Minimum door thickness 30 mm
- Wooden, steel and fire rated doors
- 10 years replaceable warranty
Product Specifications
At a Glance
-
Material: Grade 304 Stainless Steel
-
Rose diameter: Ø53 mm
-
Emergency release slot: 19.5 mm
-
Minimum door thickness: 30 mm
Outside (Emergency Release)
Rose diameter
Ø53 mm
Rose thickness
8 mm
Release slot width
19.5 mm
Slot projection
3 mm
Inside (Thumbturn)
Turn style
Low-Profile Oval Thumbturn
Turn width
17.5 mm
Turn height
18 mm
Rose diameter
Ø53 mm
Rose thickness
8 mm
Series Specification
Material
Grade 304 Stainless Steel
Minimum door thickness
30 mm
Application
Bathroom doors
Suitable door types
Wooden, steel and fire rated doors
Warranty
10 years replaceable
General
Series
Stainless Steel Door Lock Series
Model
SW-03.SS
Application & Operation
Application
Bathroom and WC doors in homes, hotels, offices and public buildings
Operation
Smooth and reliable everyday operation
