Product Description

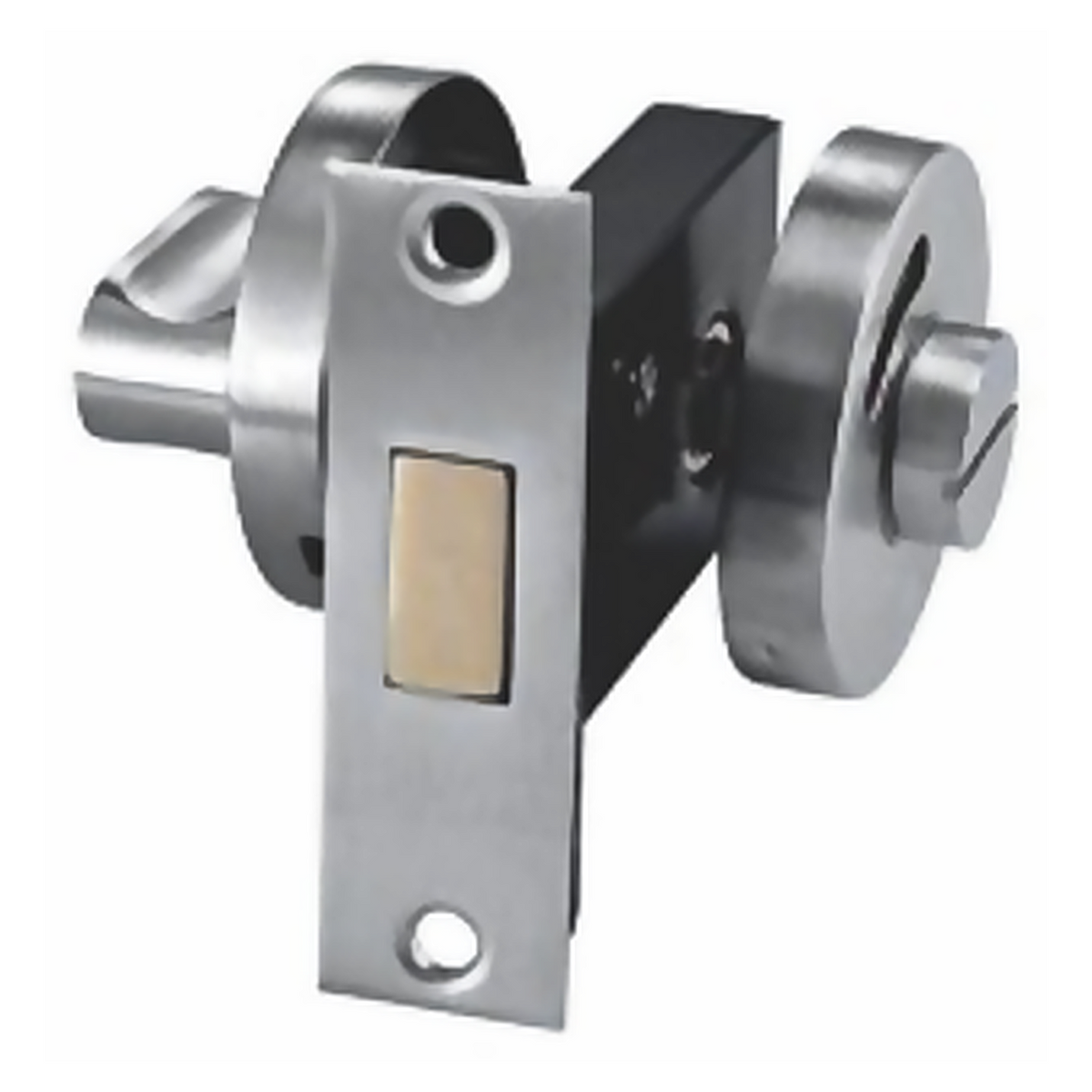

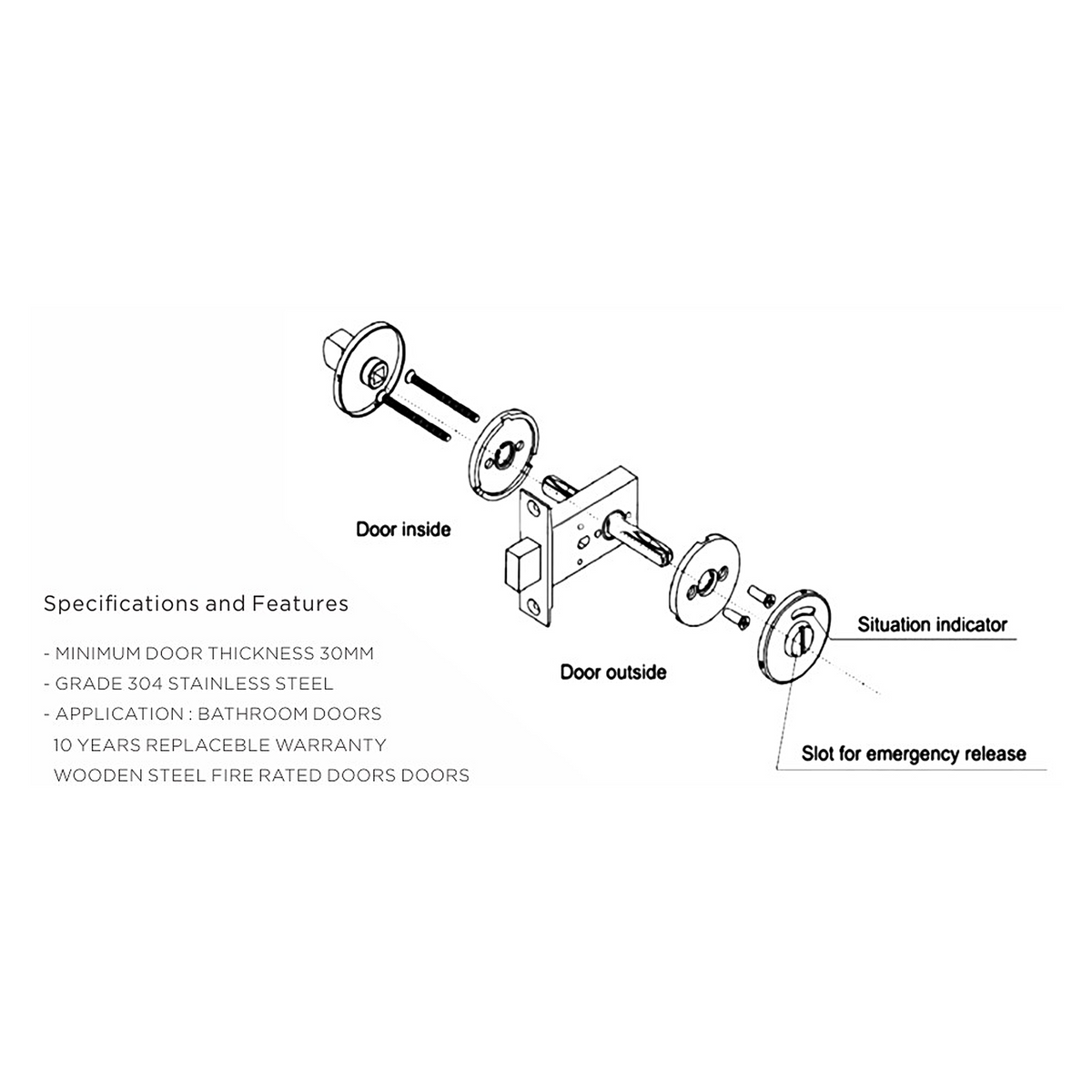

The SW-02.SS is a bathroom turn and release set from the Stainless Steel Door Lock Serie. It pairs a round knob thumbturn on the inside of the door with an emergency release on the outside, both on Ø53 mm roses in Grade 304 Stainless Steel.

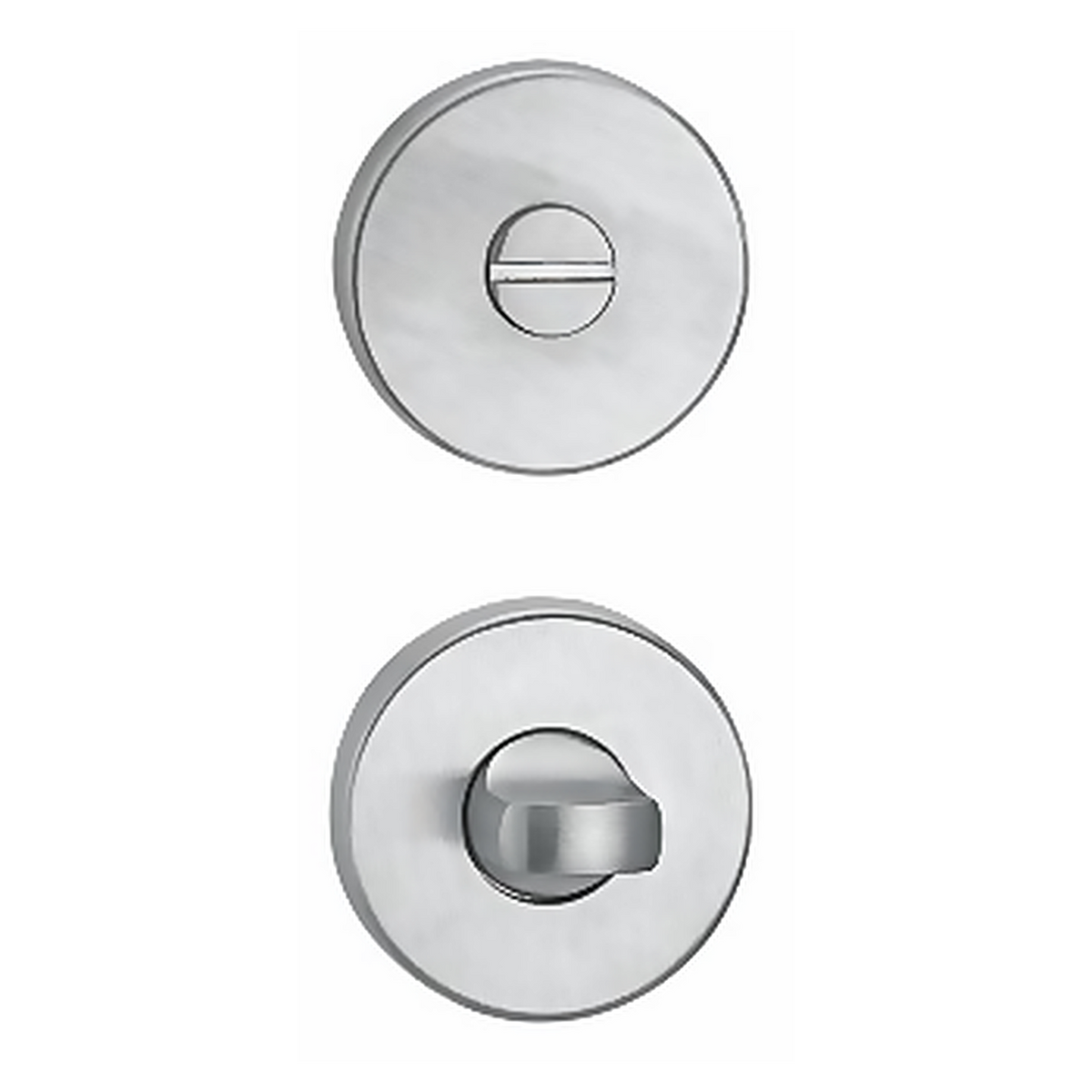

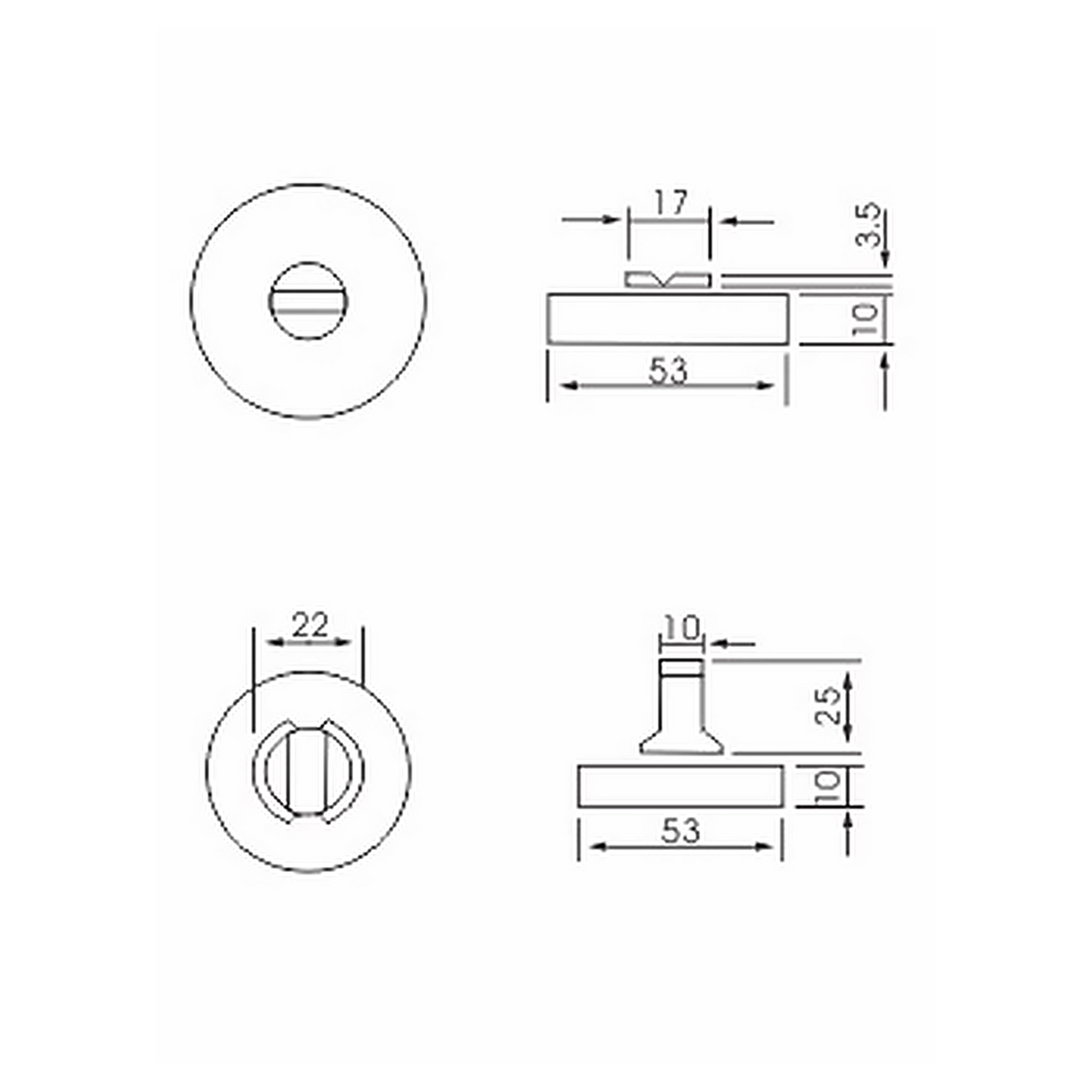

The outside rose is plain brushed stainless steel with the emergency release slot as its only feature. The release slot measures 17 mm and stands 3.5 mm proud of a 10 mm rose; the inside turn is 22 mm wide and 25 mm high on a 10 mm rose. It suits bathroom doors from 30 mm thick upward in wooden, steel and fire rated leaves, and is backed by a 10 year replaceable warranty.
Key Features
- Grade 304 Stainless Steel
- Ø53 mm roses both sides
- 17 mm slot for emergency release
- Round Knob Thumbturn inside
- Turn 22 mm × 25 mm
- Minimum door thickness 30 mm
- Wooden, steel and fire rated doors
- 10 years replaceable warranty
Product Specifications
At a Glance
-
Material: Grade 304 Stainless Steel
-
Rose diameter: Ø53 mm
-
Emergency release slot: 17 mm
-
Minimum door thickness: 30 mm
Outside (Emergency Release)
Rose diameter
Ø53 mm
Rose thickness
10 mm
Release slot width
17 mm
Slot projection
3.5 mm
Inside (Thumbturn)
Turn style
Round Knob Thumbturn
Turn width
22 mm
Turn height
25 mm
Rose diameter
Ø53 mm
Rose thickness
10 mm
Series Specification
Material
Grade 304 Stainless Steel
Minimum door thickness
30 mm
Application
Bathroom doors
Suitable door types
Wooden, steel and fire rated doors
Warranty
10 years replaceable
General
Series
Stainless Steel Door Lock Series
Model
SW-02.SS
Application & Operation
Application
Bathroom and WC doors in homes, hotels, offices and public buildings
Operation
Smooth and reliable everyday operation
