Product Description

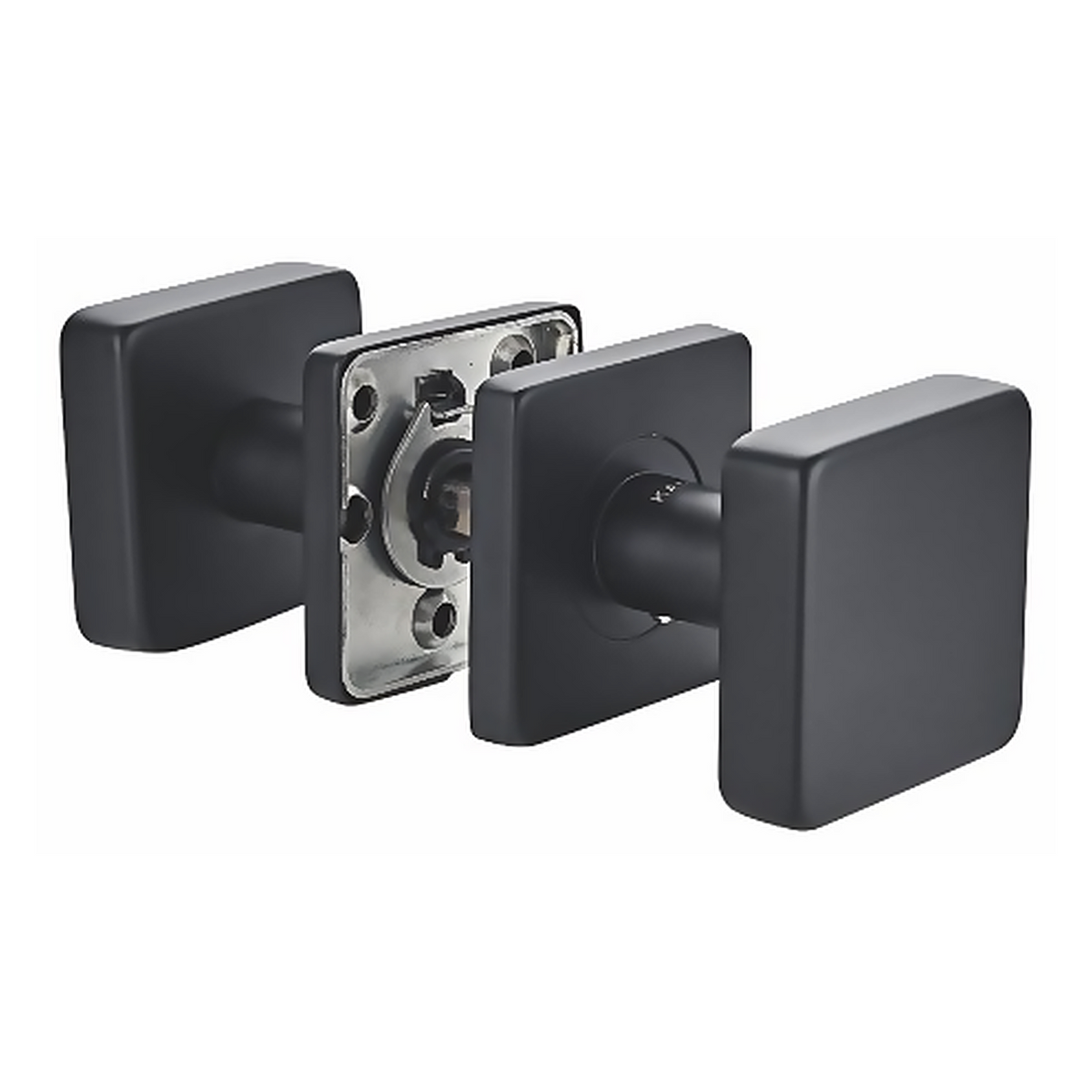

The SRH.SE102.BLK.F is a square knob set in black from the Stainless Steel Door Lock Series. It comes as a complete set – knobs, spindle, chassis and both escutcheons – ready to fit.
It is made in stainless steel (grades 201, 304 or 316) and fits doors 35 to 55 mm thick. The fixings are concealed, so no screws show on the finished door, and the spring-assisted chassis keeps the knob sitting level instead of drooping over time. The same handle design is offered with different escutcheons and functions, so you can mix passage, privacy and locking versions across a project and keep the look consistent.
Key Features
- Complete set - knobs, spindle, chassis and escutcheons
- Made from stainless steel, so it will not rust
- Fits doors 35 to 55 mm thick
- Screws are hidden, nothing shows on the door
- Spring inside keeps the knob sitting level
- 53 mm square rose, 55 mm projection
- Also available in SSS, PSS, PVD, AB and AC finishes
- Same handle offered with other escutcheons and functions
Product Specifications
At a Glance
-
Material: Stainless steel 201 / 304 / 316
-
Rose: 53 mm square
-
Projection: 55 mm
-
Fits doors: 35 – 55 mm thick

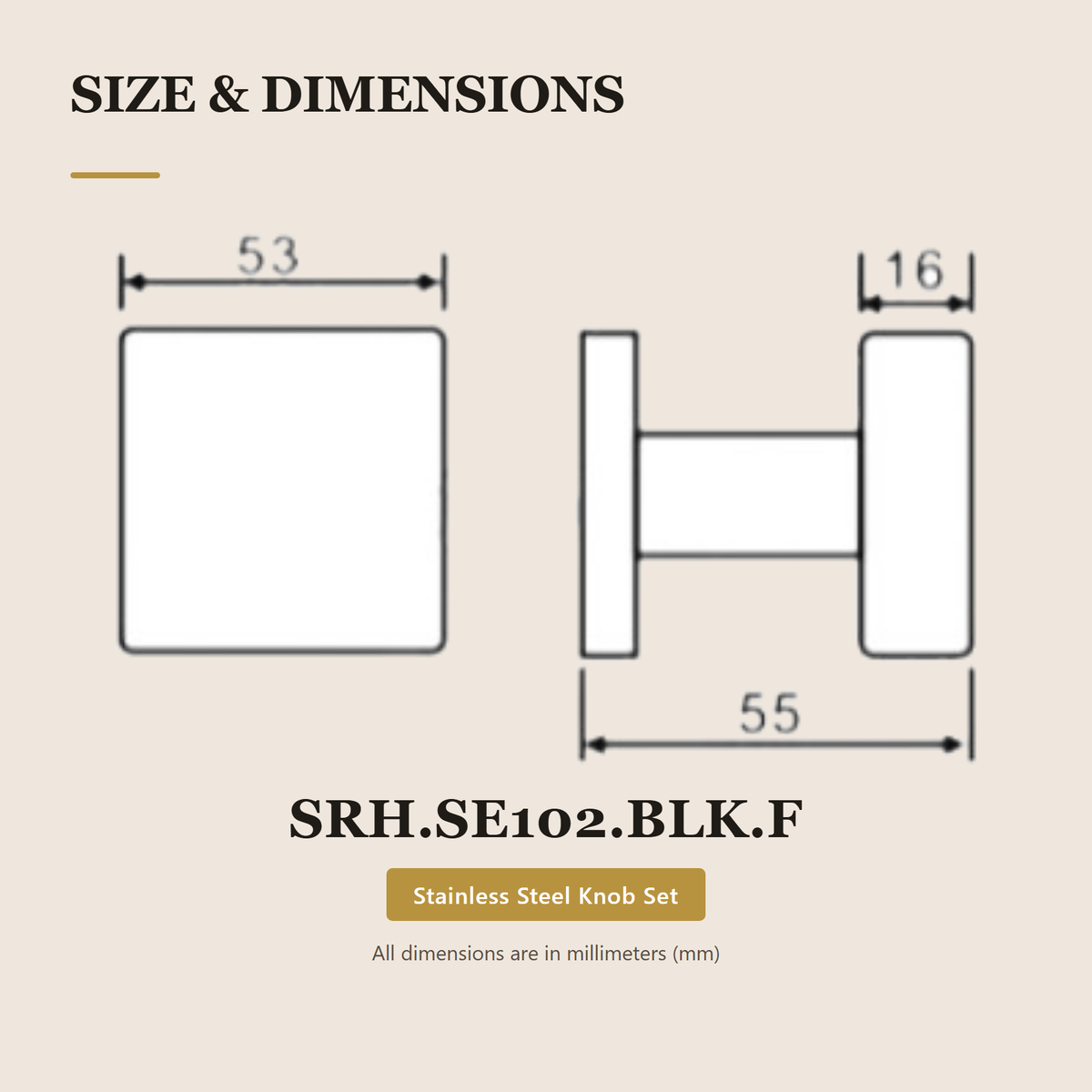

Dimensions
Rose
53 mm square
Knob depth
16 mm
Projection
55 mm
Diameter options
Ø16 / Ø19 / Ø20 / Ø22 mm
Spindle
8 × 8 / 17 × 7 / 16 × 6 mm
Materials & Finish
Material
Stainless steel 201 / 304 / 316

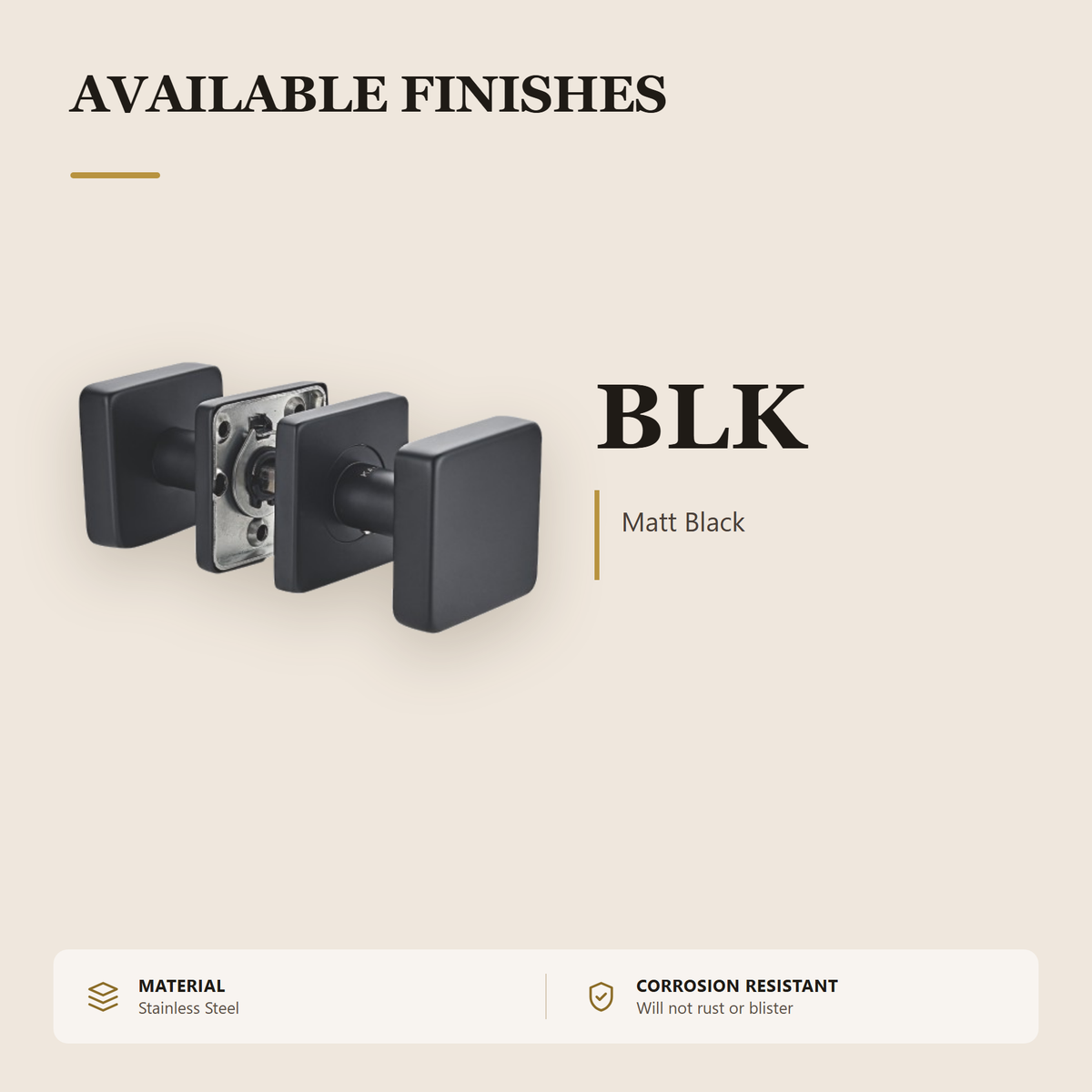

Finish options
SSS, PSS, PVD, AB, AC
Supplied finish
Black (BLK)
Fitting
Fits doors
35 – 55 mm thick
Fixings
Concealed
Chassis
Spring assisted
General
Series
Stainless Steel Door Lock Series
Model
SRH.SE102.BLK.F
Application & Operation
Application
Interior and entrance doors in homes, offices and commercial fit-outs
Operation
Smooth and reliable everyday use
