Product Description

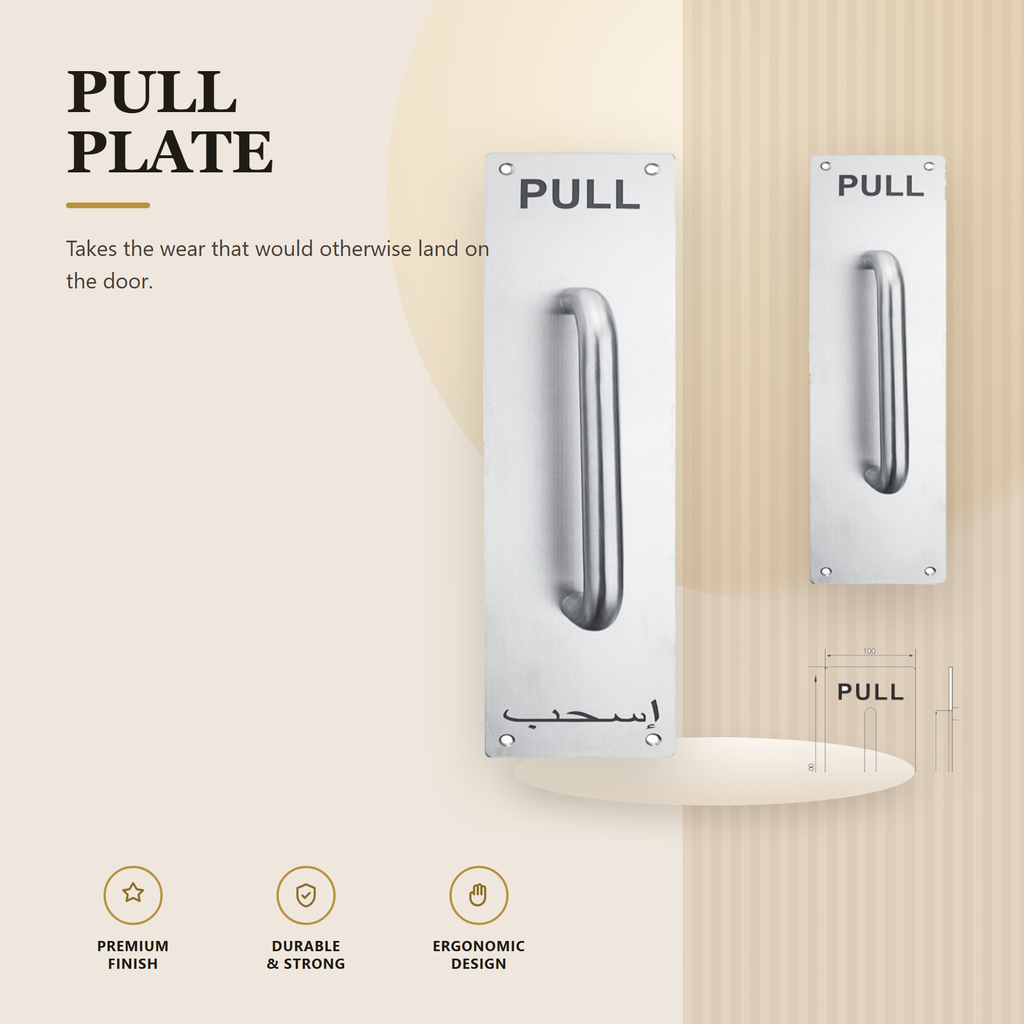

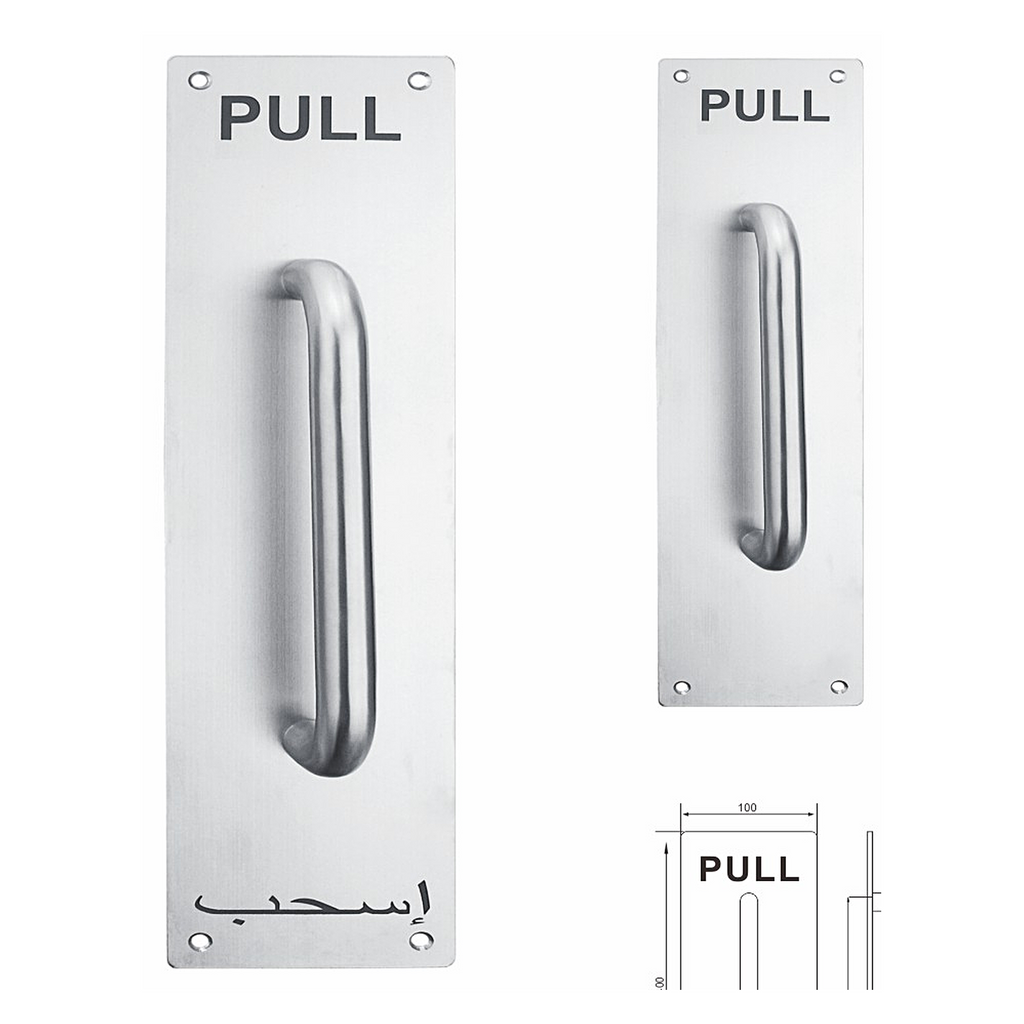

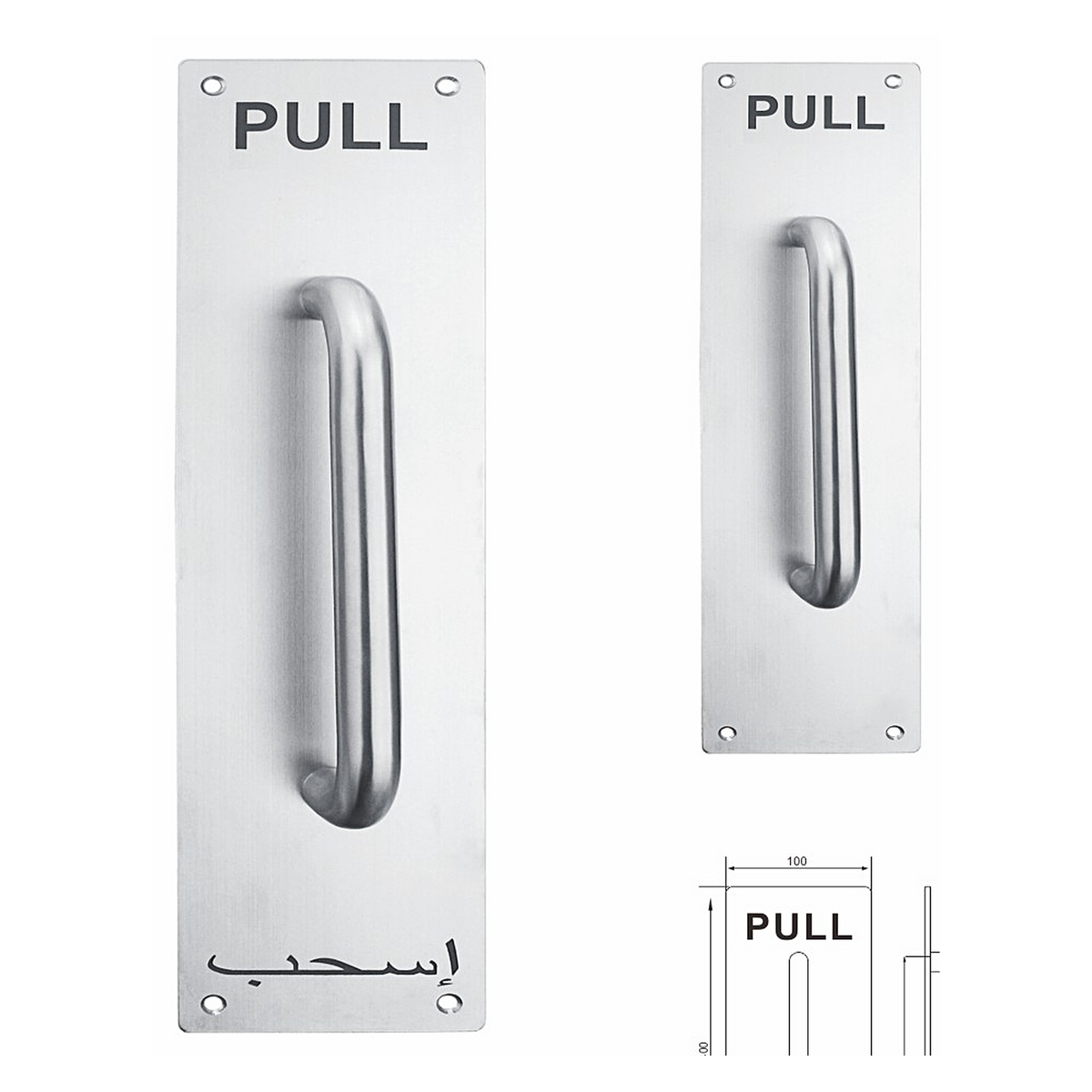

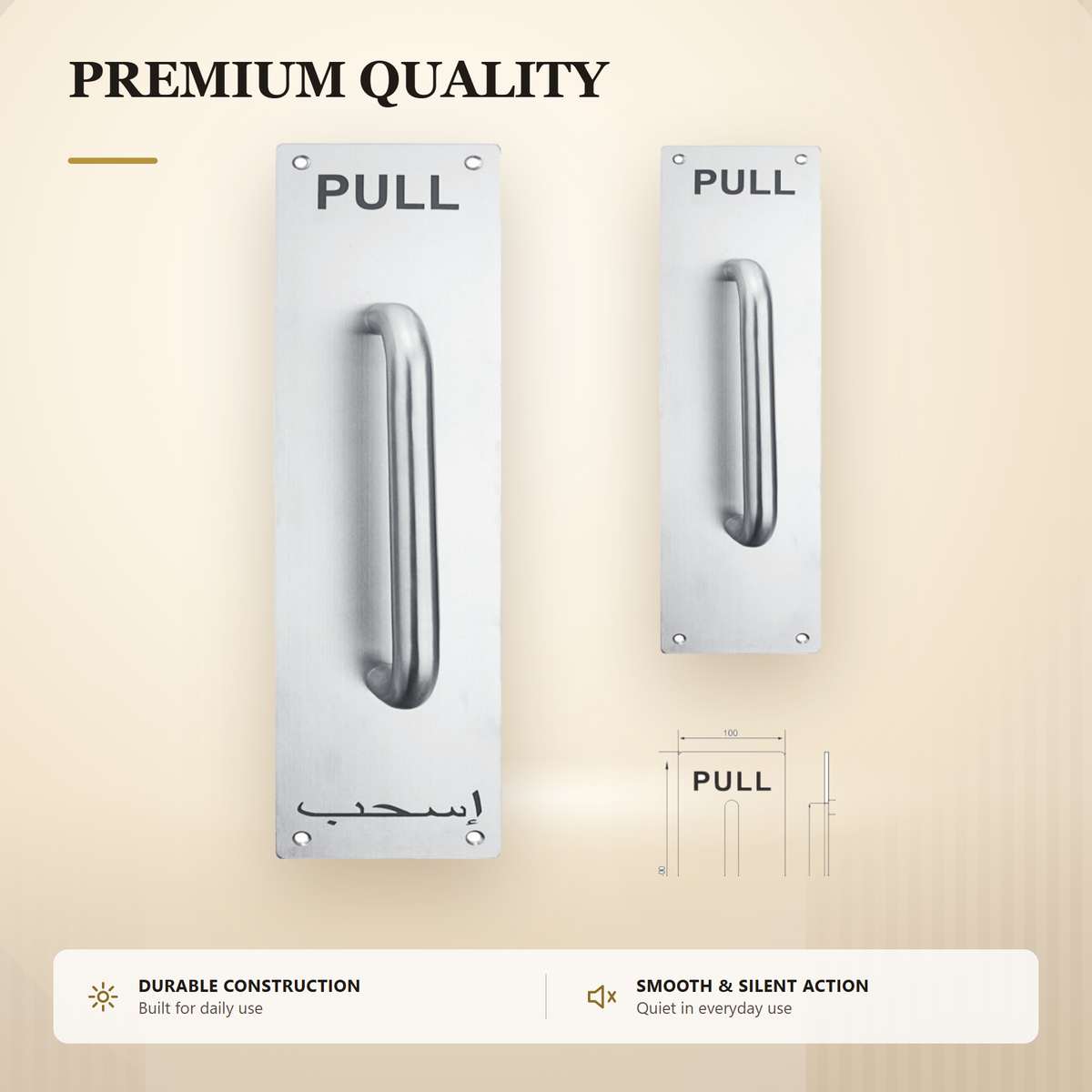

The PH.100.300x100.SS is a pull plate with a D handle from the Stainless Steel Door Handle Series, marked PULL in English and Arabic. The plate takes the wear that would otherwise land on the door itself.
The plate measures 300 × 100 mm (400 mm also available) at 1.5 to 2 mm thick. The handle stands 54 mm off the plate, in bar diameters of 19 mm and 22 mm with 150 mm or 200 mm fixing centres. In stainless steel with SS, PSS, DAB and PVD finishes – made for shopfronts, offices and public entrances where a door is handled all day.
Key Features
- Pull plate with a D handle in one piece
- Marked PULL in English and Arabic
- 300 x 100 mm plate, 400 mm also available
- Handle stands 54 mm off the plate
- Bar 19 mm or 22 mm, centres 150 mm or 200 mm
- Made from stainless steel, so it will not rust
- Protects the door from handling marks
- Four finishes: SS, PSS, DAB and PVD
Product Specifications
At a Glance
-
Material: Stainless steel
-
Plate: 300 × 100 mm (400 mm also)
-
Plate thickness: 1.5 – 2 mm
-
Handle projection: 54 mm

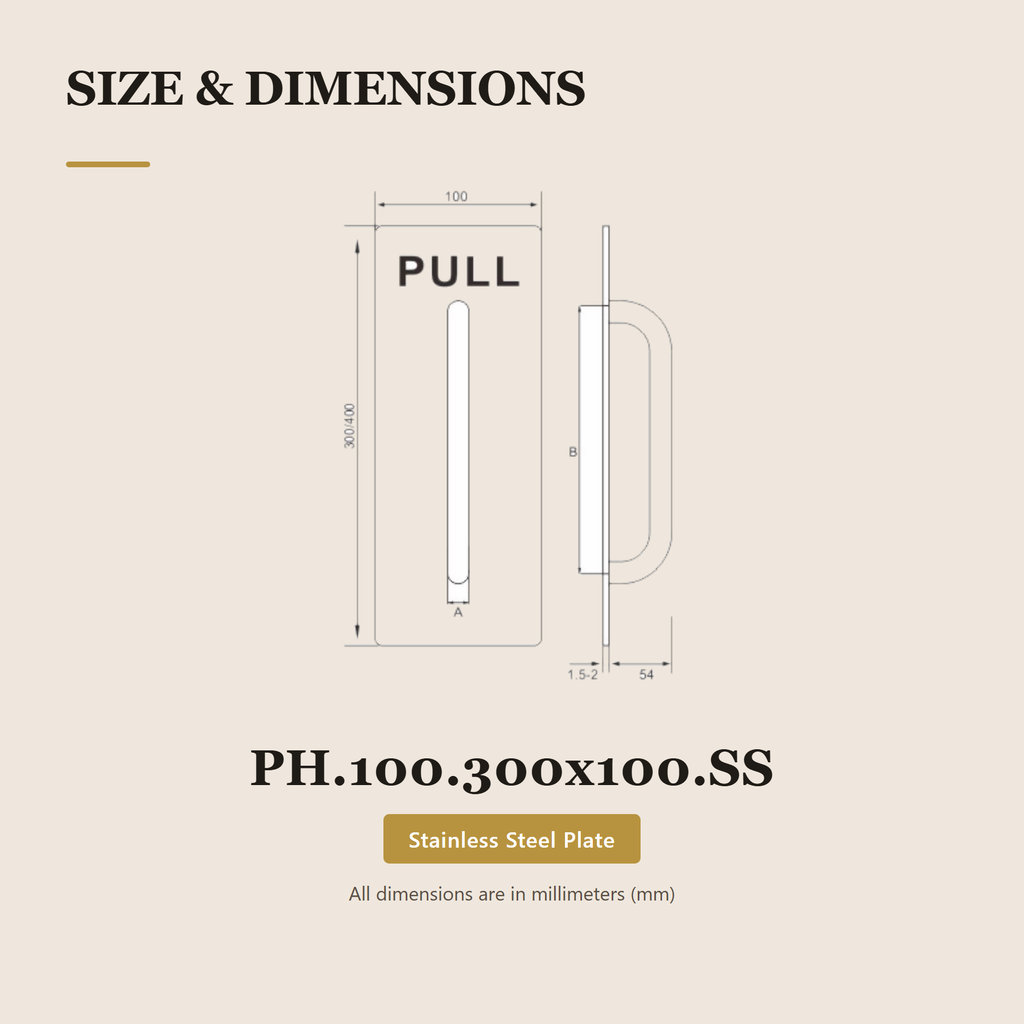

Dimensions
Plate
300 × 100 mm, 400 mm also available
Plate thickness
1.5 – 2 mm
Handle projection
54 mm
Bar diameter (A)
19 mm or 22 mm
Fixing centres (B)
150 mm or 200 mm
Marking
Text
PULL in English and Arabic
Materials & Finish
Material
Stainless steel

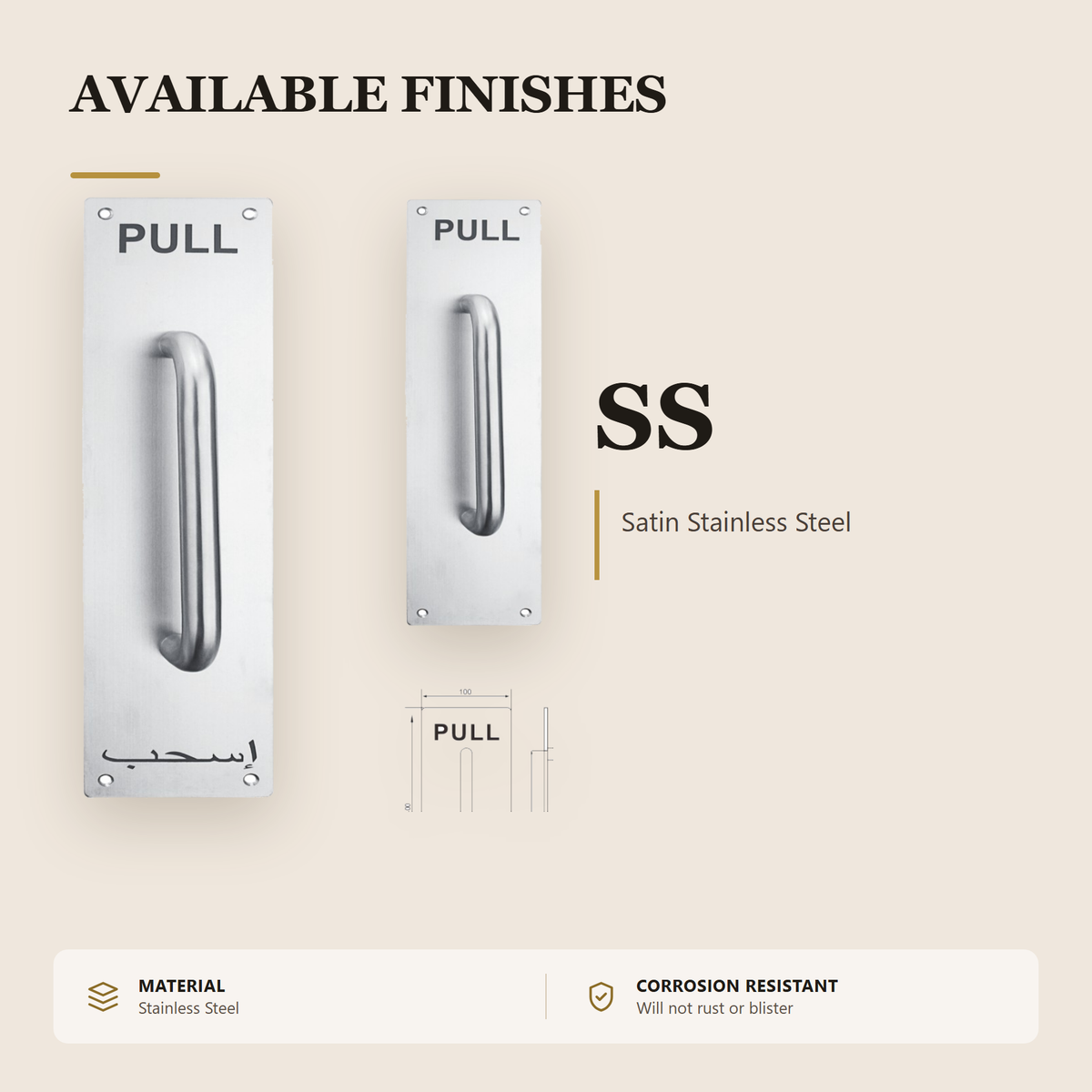

Finish options
SS / PSS / DAB / PVD
General
Series
Stainless Steel Door Handle Series
Model
PH.100.300x100.SS
Application & Operation
Application
Shopfronts, offices, hotels and public entrance doors
Operation
Smooth and reliable everyday use
