Product Description
The LB.251185.SS is a stainless steel mortise lock body from the Smart Lock Body Series by A.K.O & Kanee (Cylenk / Ilerk). It is built around a 25 mm backset and an 85 mm centre distance, with a 240 mm × 22 mm faceplate and an overall case depth of 40 mm – the standard European mortise format used with lever handles and euro-profile cylinders.
Inside, a spring-loaded latch bolt works alongside a single throw deadbolt for smooth, quiet operation and secure latching. Series finishes cover Stainless Steel (SS), Satin Nickel (SN), Antique Brass (AB) and Antique Copper (AC), with stainless steel, brass and iron construction options, and every lock body ships with screws, a striking plate and a plastic strike box. The 25 mm backset makes it a natural fit for slim-stile and narrow-frame doors where the case has to sit close to the door edge.
Key Features
- 25 mm backset
- 85 mm centre distance
- 240 mm × 22 mm faceplate
- 40 mm overall case depth
- Latch bolt with one deadbolt
- Euro-profile cylinder preparation
- Square lever follower
- Available in SS, SN, AB and AC finishes
- Stainless steel, brass or iron construction

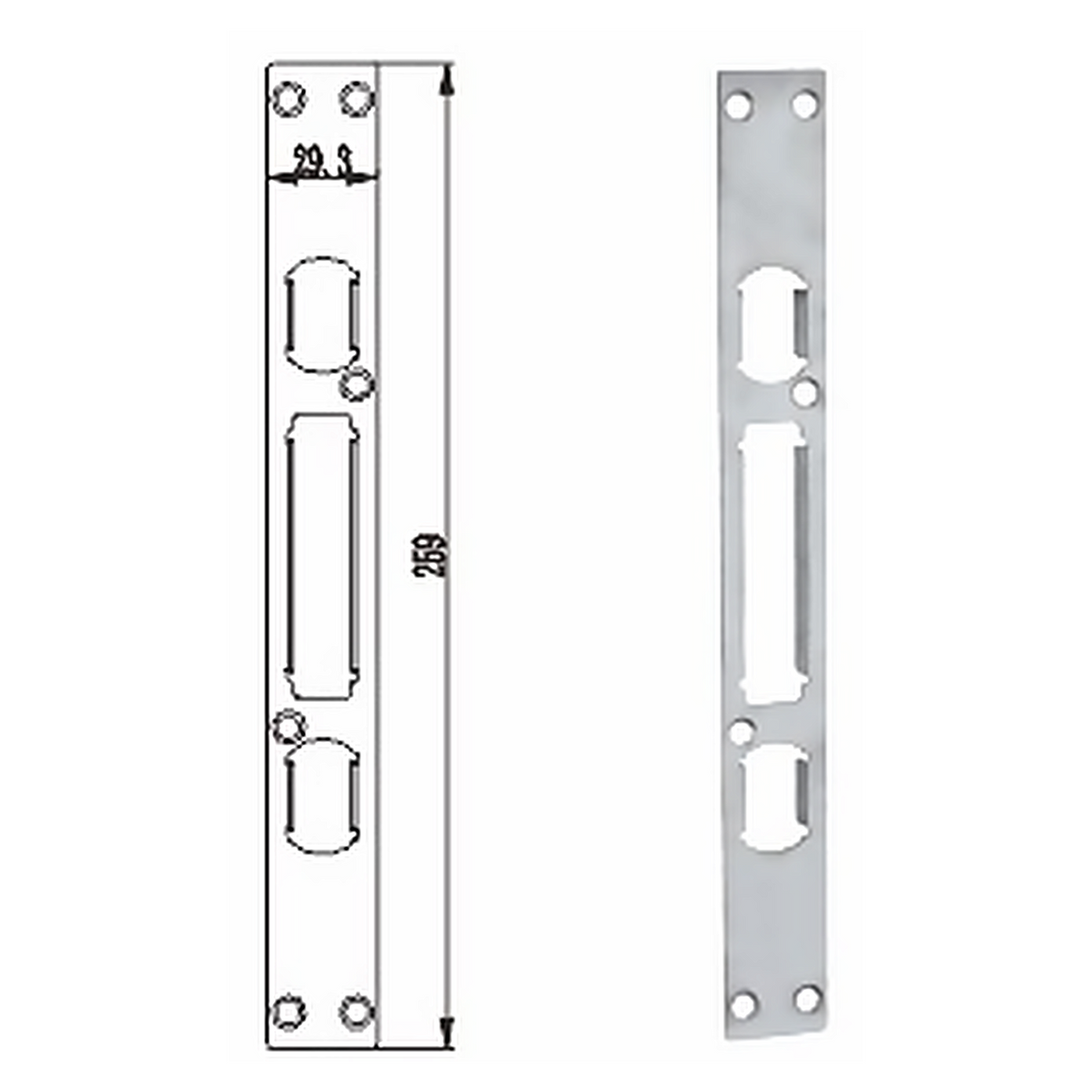

- Supplied with screws, striking plate and plastic strike box
Product Specifications
At a Glance
-
Backset (edge distance): 25 mm
-
Centre distance: 85 mm
-
Faceplate: 240 mm × 22 mm
-
Case depth: 40 mm
-
Finish options: SS / SN / AB / AC
Dimensions
Backset (edge distance)
25 mm
Centre distance
85 mm
Case depth (overall, including faceplate)
40 mm
Faceplate length
240 mm
Faceplate width
22 mm
Lock Function
Lock type
Mortise lock body
Bolts
Latch bolt with one deadbolt
Cylinder preparation
Euro-profile cylinder
Follower
Square lever follower
Materials & Finish
Material
Stainless steel / brass / iron
Finish options
SS (Stainless Steel), SN (Satin Nickel), AB (Antique Brass), AC (Antique Copper)
Supplied finish
Stainless Steel (SS)
Accessories Included
Accessories
Screws, striking plate, plastic strike box
General
Series
Smart Lock Body Series
Brand
A.K.O & Kanee
Model
LB.251185.SS
Application & Operation
Application
Slim-stile, narrow-frame and aluminium-framed interior doors
Operation
Smooth and reliable latching and deadlocking action
