ES.SN01 – Premium Stainless Steel Round Escutcheon (SS)

Product Description

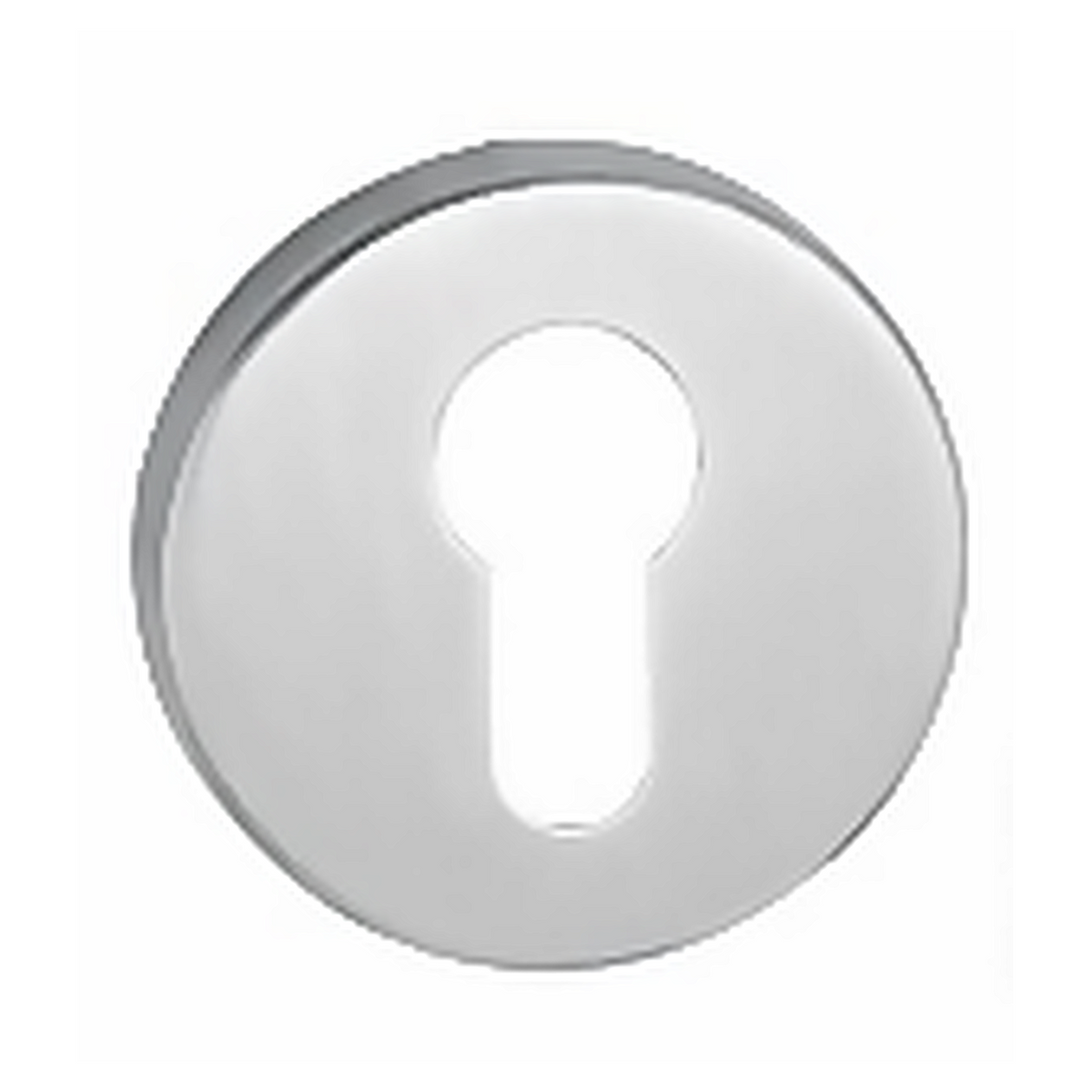

The ES.SN01.SS is a round rose escutcheon from the Stainless Steel Door Lock Series by A.K.O & Kanee (Cylenk / Ilerk), turned from Grade 304 Stainless Steel and measuring Ø53 mm by 10 mm thick.

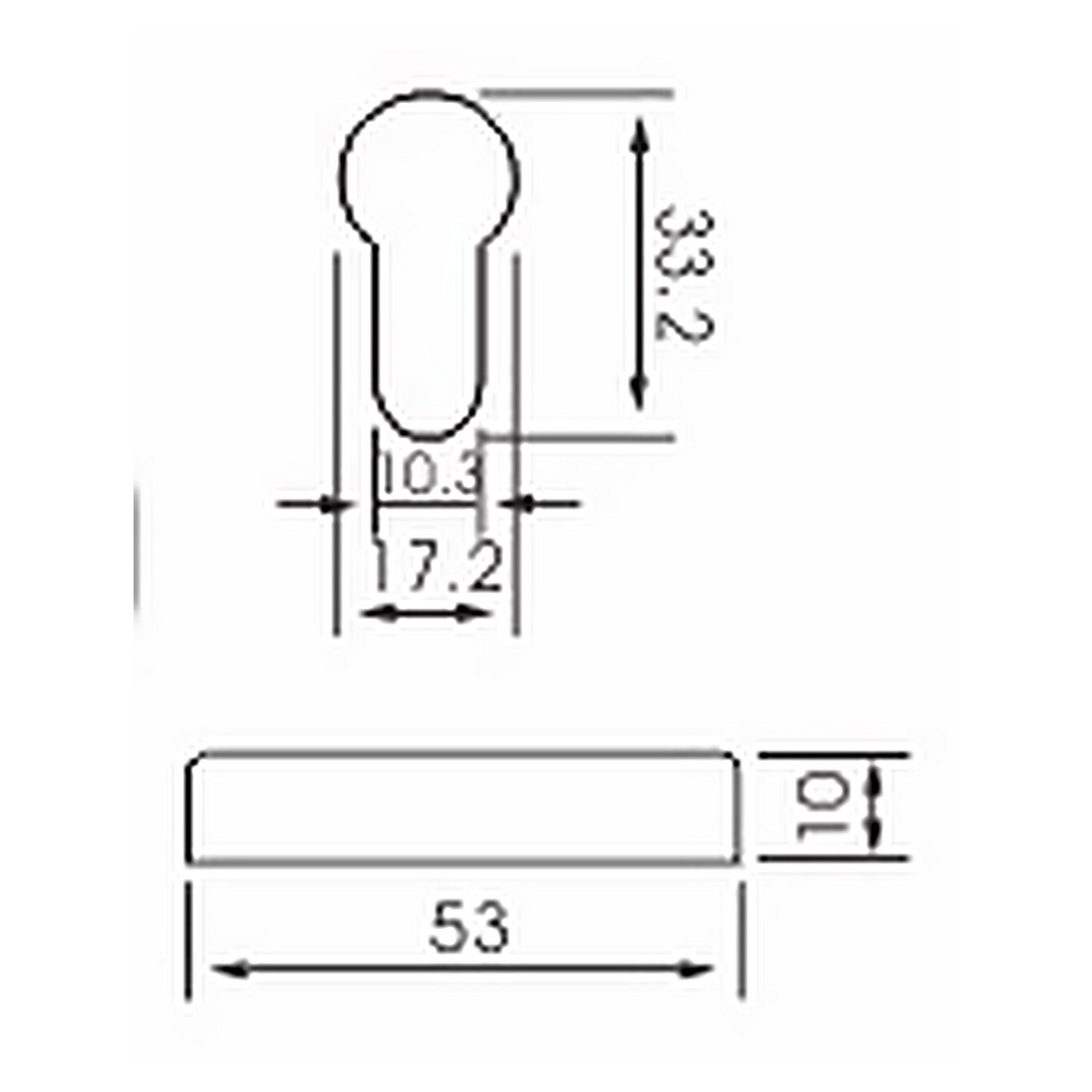

It is cut for a euro profile cylinder – 33.2 mm tall by 17.2 mm across the round, narrowing to a 10.3 mm waist. Fitted in pairs either side of the door, escutcheons finish the cylinder opening neatly, protect the door face from wear and tie the ironmongery together visually. Backed by a 10 year replaceable warranty.

Key Features

• Grade 304 Stainless Steel
• Round escutcheon, Ø53 mm
• 10 mm thick
• Cut-out: Euro profile cylinder, 33.2 × 17.2 mm with a 10.3 mm waist
• Supplied to pair either side of the door
• Protects the door face around the opening
• 10 years replaceable warranty

Product Specifications

At a Glance

• Material: Grade 304 Stainless Steel
• Shape: Round
• Size: Ø53 mm
• Thickness: 10 mm

Dimensions

Shape
Round

Size
Ø53 mm

Thickness
10 mm

Cut-out
Euro profile cylinder, 33.2 × 17.2 mm with a 10.3 mm waist

Series Specification

Material
Grade 304 Stainless Steel

Warranty
10 years replaceable

General

Series
Stainless Steel Door Lock Series

Brand
A.K.O & Kanee

Model
ES.SN01.SS

Application & Operation

Application
Interior and entrance doors alongside matching levers, knobs and turn sets

Operation
Smooth and reliable everyday operation
