Product Description

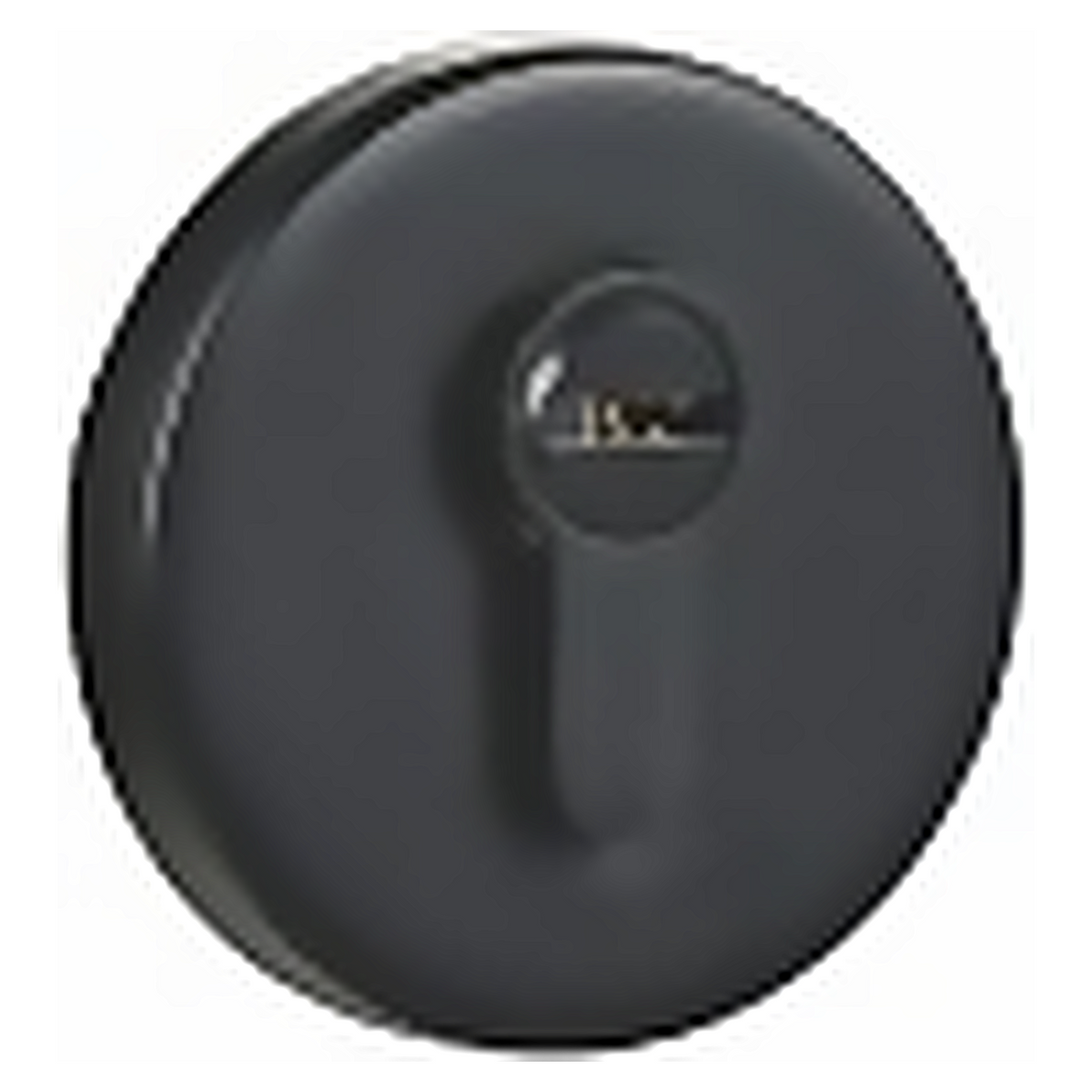

The DL.R.2303 is a lever-style smart lock with a semiconductor fingerprint head and five ways to open the door, from the Smart Lock Series by A.K.O & Kanee (Cylenk / Ilerk). Finished in Matt Black (BLK), it combines modern security technology with a clean, contemporary appearance suited to both residential and commercial interiors.
It opens by fingerprint, password, TTLock app, key or temporary password, and stores 100 fingerprints and 250 passwords. Voice prompts and Bluetooth are built in, and the Type-C port covers emergency power. The black panel is standard and other colours can be customised, as can the door plate size.
Key Features
- Fingerprint unlock
- Password unlock

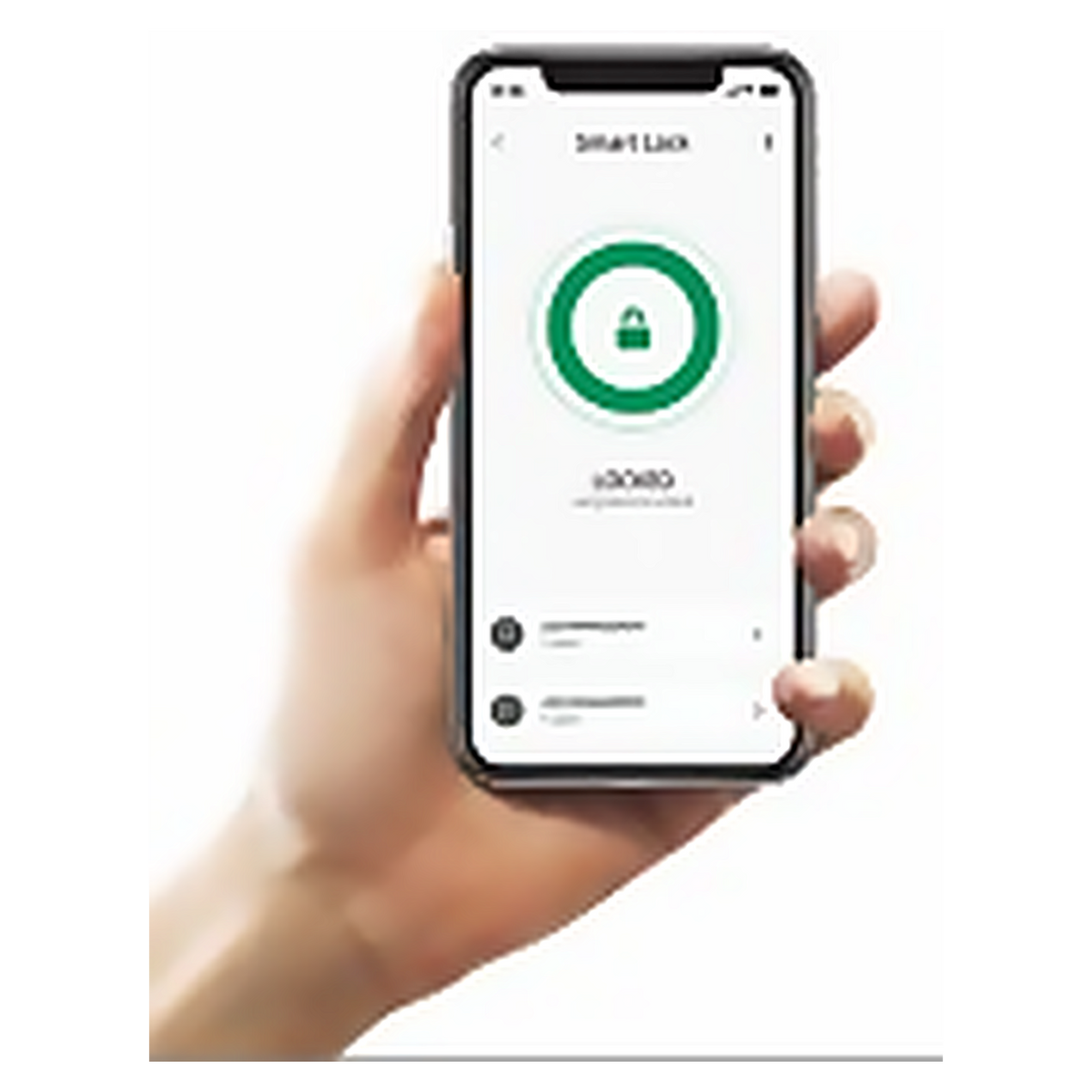

- TTLock app unlock
- Key unlock
- Temporary password
- Voice prompts
- Bluetooth
- Type-C emergency power
Product Specifications
At a Glance
-
Unlocking: Fingerprint, password, TTLock app, key, temporary password
-
Capacity: 100 fingerprints, 250 passwords
-
Power: 4 × AAA batteries, Type-C
-
Suitable for: Wooden and security doors, 35 – 50 mm
Unlocking & Capacity
Unlocking modes
Fingerprint, password, TTLock app, key, temporary password
Fingerprint recognition
Semiconductor fingerprint head
Fingerprint capacity
100 sets
Password capacity
250 sets
Functions
Unlocking mode, voice prompts, Bluetooth
Power & Connectivity
Power supply
4 × AAA batteries
USB
Type-C
Materials & Finish
Panel material
Aluminium alloy
Colour
Black (other colours can be customised)
Dimensions & Fitting
Lock body
5572
Door plate thickness
30 – 50 mm (special sizes can be customised)
Applicable door type
Wooden door / security door (35 – 50 mm thickness)
Handle dimensions
161.5 mm × 28.5 mm, 149.5 mm lever, 70 mm rose
Operating Conditions
Operating temperature
-2 °C to 55 °C
Packaging & Logistics
Packaging
Neutral colour box + pearl cotton
Quantity
12 pcs per box
Inner box size
27 × 18 × 10 cm
Outer box size
55 × 36 × 30 cm
Gross weight
1.71 kg (1 set) / 20.9 kg (1 carton)
General
Series
Smart Lock Series
Lock type
Smart door lock (lever handle)
Application & Operation
Application
Wooden and security doors in homes, offices and rental properties
Operation
Smooth and reliable smart locking mechanism
