Product Description
The DL.P.2408 is an ultra-narrow push-pull smart lock built for aluminium door systems, from the Smart Lock Series by A.K.O & Kanee (Cylenk / Ilerk). Finished in Silver (SIL), it combines modern security technology with a clean, contemporary appearance suited to both residential and commercial interiors.
At just 37 mm wide the panel is made for narrow frames – broken bridge aluminium doors, sliding doors and translation doors – without losing capability. It carries outdoor waterproofing, a high-definition visual peephole, a class C lock cylinder and a hundred-fingerprint capacity, and opens six ways including card, temporary password and optional remote unlocking.
Key Features
- Fingerprint unlock
- Swipe card to unlock
- Temporary password
- Password unlocking
- Key unlock
- Remote unlocking (optional)
- Outdoor waterproofing
- App intelligent management (optional)
- Narrow frame design
- High-definition visual peephole
Product Specifications
At a Glance
-
Panel design: 37 mm ultra-narrow
-
Unlocking: Fingerprint, password, card, key, temporary password, remote (optional)
-

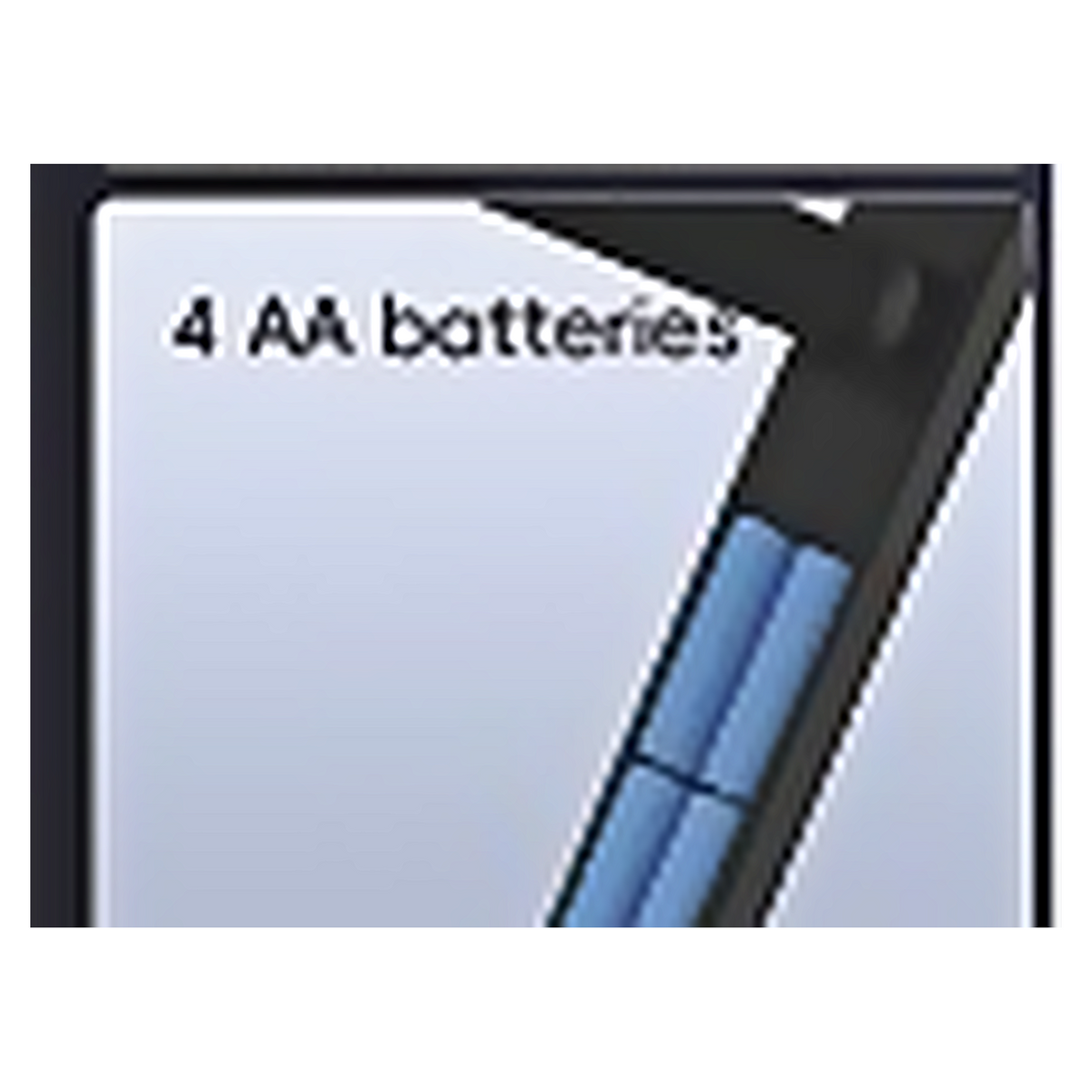

Power: 4 × AA batteries, Type-C emergency
-
Suitable for: Broken bridge aluminium, sliding and translation doors
Unlocking & Capacity
Unlocking modes
Fingerprint, password, card, key, temporary password, remote unlocking (optional)
Fingerprint capacity
One hundred fingerprints
Password length
6 to 12 numbers
Security
Lock cylinder
Class C lock cylinder
Weather protection
Outdoor waterproofing
Peephole
High-definition visual peephole
Power & Connectivity
Power supply
4 × AA batteries
Emergency power supply
Type-C emergency power supply
App
App intelligent management (optional)
Materials & Finish
Material
Aluminium alloy
Colour
Black / silver
Dimensions & Fitting
Lock design
37 mm ultra-narrow
Lock body
EKFL3585
Panel dimensions
330 mm × 23 mm, 37 mm depth, 136 mm handle, 55 mm
Applicable door type
Broken bridge aluminium doors, KFC doors, sliding doors, translation doors and similar
Operating Conditions
Operating temperature
-20 °C to 60 °C
General
Series
Smart Lock Series
Lock type
Smart door lock (ultra-narrow panel)
Application & Operation
Application
Residential and commercial aluminium door systems
Operation
Smooth and reliable smart locking mechanism
