Product Description

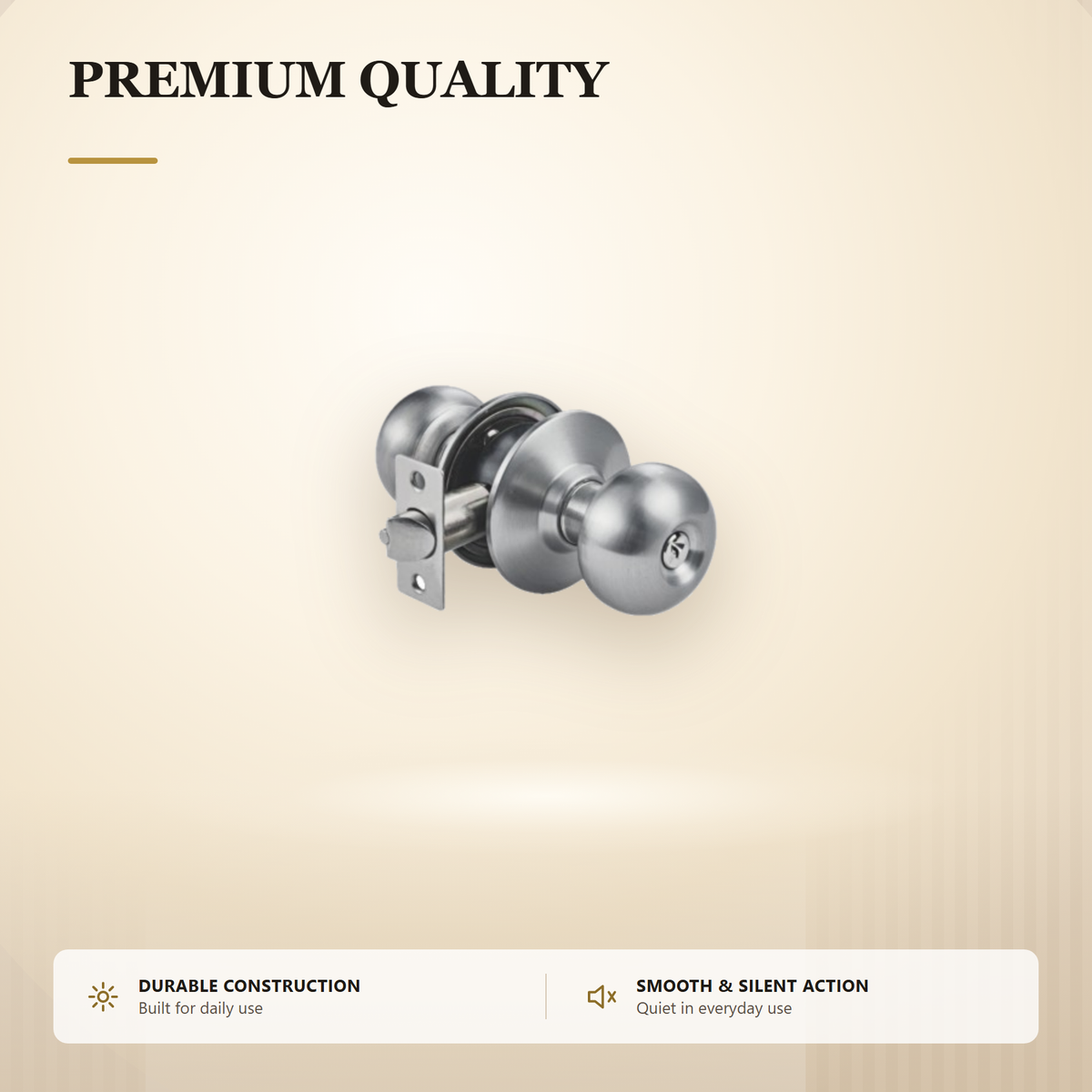

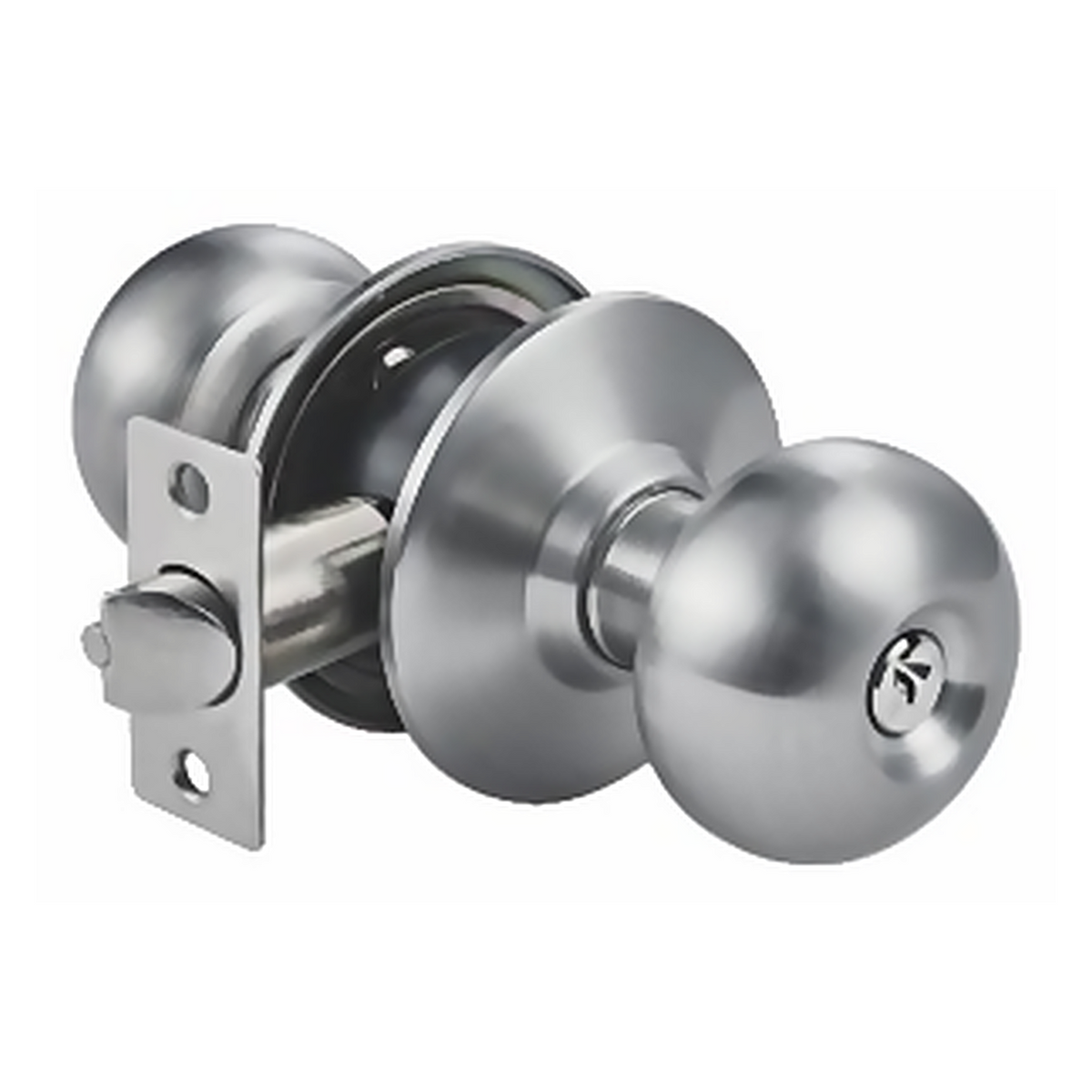

The 691.AD.SS-L is a cylindrical knob lock in stainless steel from the Stainless Steel Door Lock Series. This is the familiar round knob with a keyhole – you lock it with a key from outside and a button or turn from inside.
It fits doors 35 to 50 mm thick and is supplied with a 2-3/8" or 2-3/4" backset (60 mm or 70 mm), so it drops into the standard hole most doors already have. The 5-pin cylinder is available in Kwikset or Yale keyway, and it is handed for both left and right doors – one product covers every door in the house.
Key Features
- Locks with a key from outside
- Drops into the standard door hole
- Choose 60 mm or 70 mm backset
- Fits doors 35 to 50 mm thick
- Works on both left and right hand doors
- 5-pin cylinder, Kwikset or Yale keyway
- Comes with face plate and strike plate
- Round corner face plate available on request
Product Specifications
At a Glance
-
Backset: 60 mm or 70 mm
-
Door thickness: 35 – 50 mm
-
Cylinder: 5-pin
-
Handing: Left and right hand

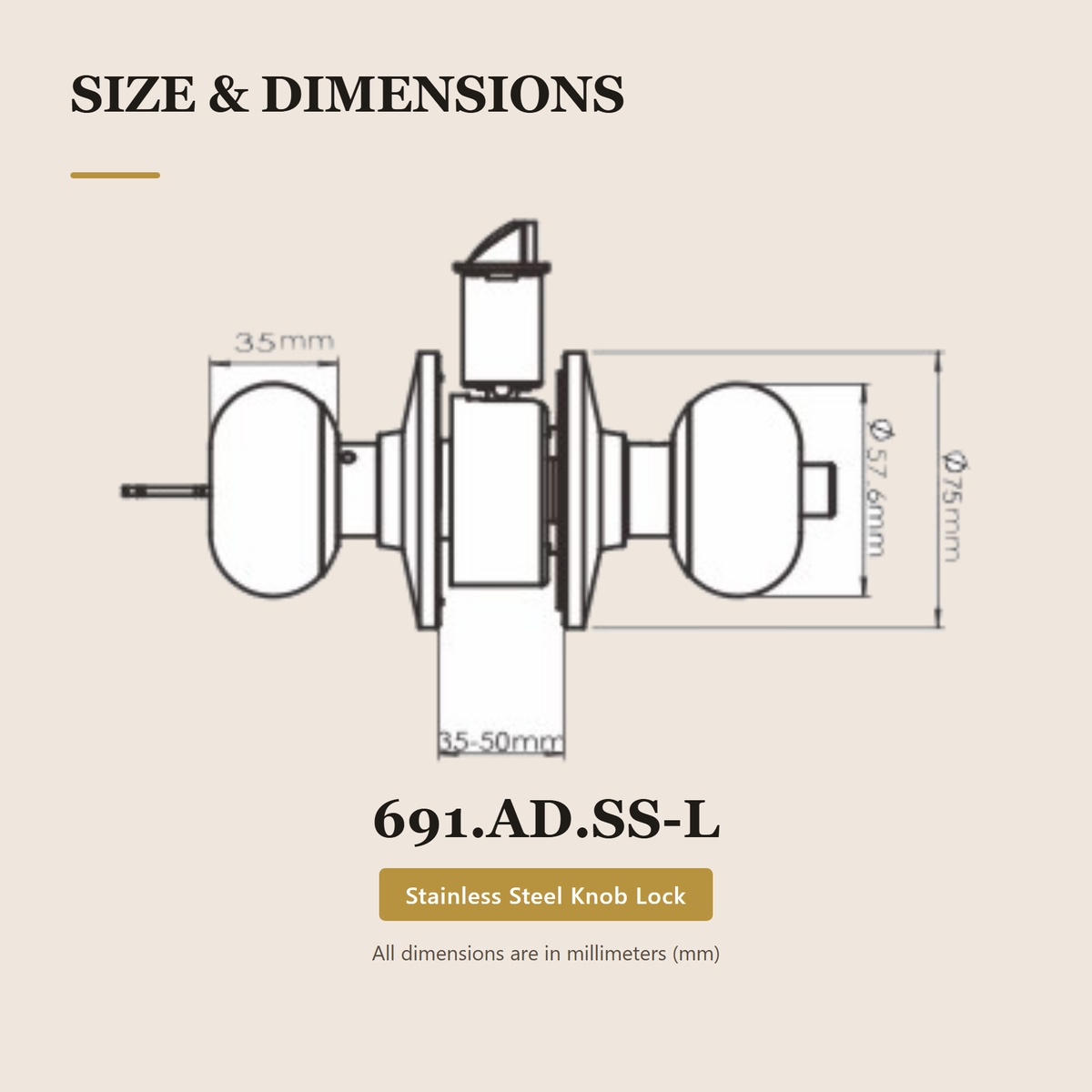

Fitting
Backset
2-3/8" or 2-3/4" (60 mm or 70 mm)
Door thickness
1-3/8" to 2" (35 – 50 mm)
Door opening direction
Fits both right and left hand doors
Lock & Cylinder
Cylinder
5-pin cylinder, Kwikset and Yale keyway available
Face plate
1" × 2-1/4" (25 × 57 mm) square corner standard, round corner optional
Strike plate
1" × 2-1/4" (25 × 57 mm) full lip, square corner standard

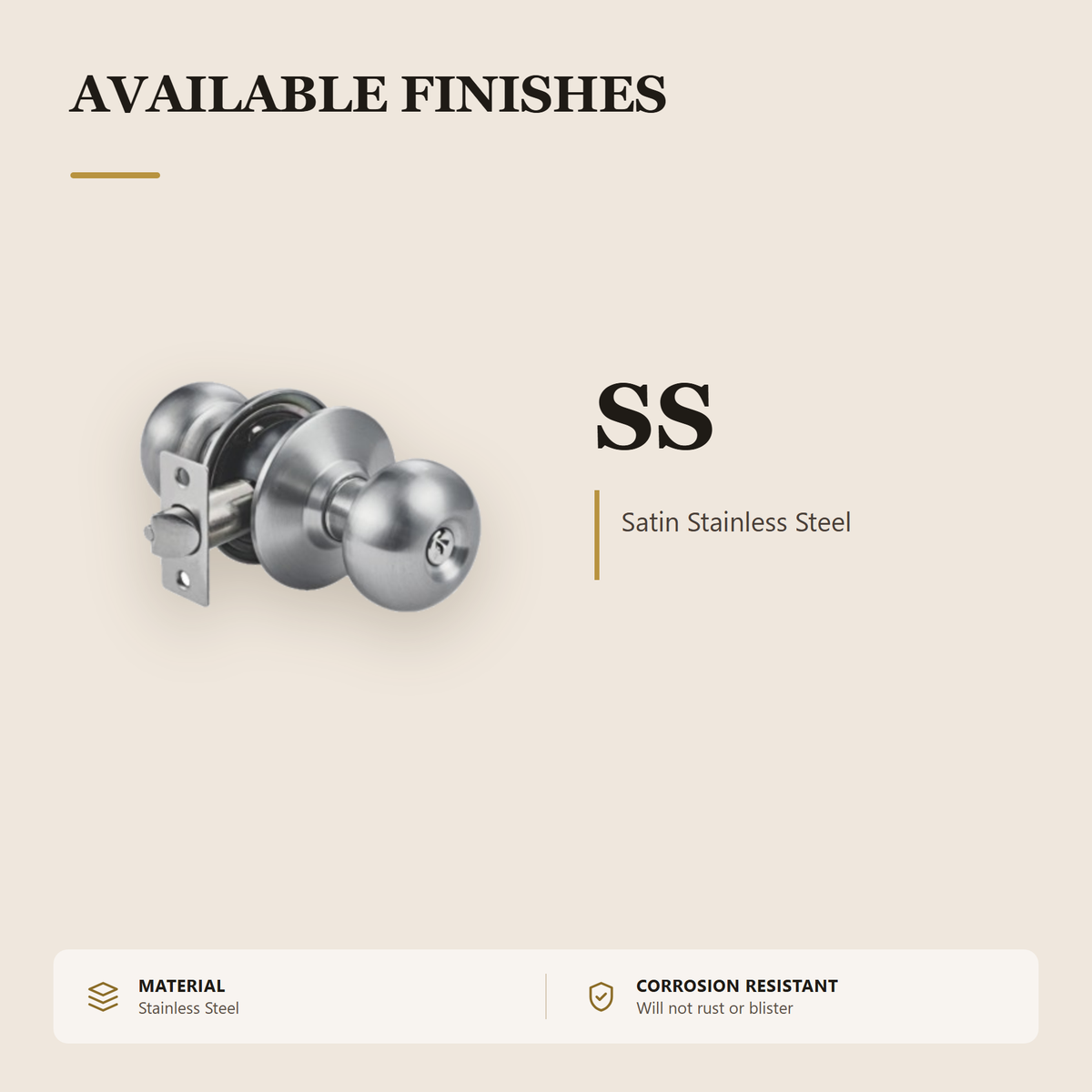

Materials & Finish
Finish
Satin Stainless Steel
General
Series
Stainless Steel Door Lock Series
Model
691.AD.SS-L
Application & Operation
Application
Interior and entrance doors in homes, offices and rental properties
Operation
Smooth and reliable everyday use
